Pin Diagrams

Figure 4-1 shows the pinout for the 32-pin RHB package.

MSP430FR2633 MSP430FR2632 MSP430FR2533 MSP430FR2532 SLAS942_PINOUT_QFN32.gifFigure 4-1 32-Pin RHB Package (Top View)

Figure 4-2 shows the pinout for the 32-pin DA package.

MSP430FR2633 MSP430FR2632 MSP430FR2533 MSP430FR2532 SLAS942__PINOUT_TSSOP32.gifFigure 4-2 32-Pin DA Package (Top View)

Figure 4-3 shows the pinout for the 24-pin RGE package.

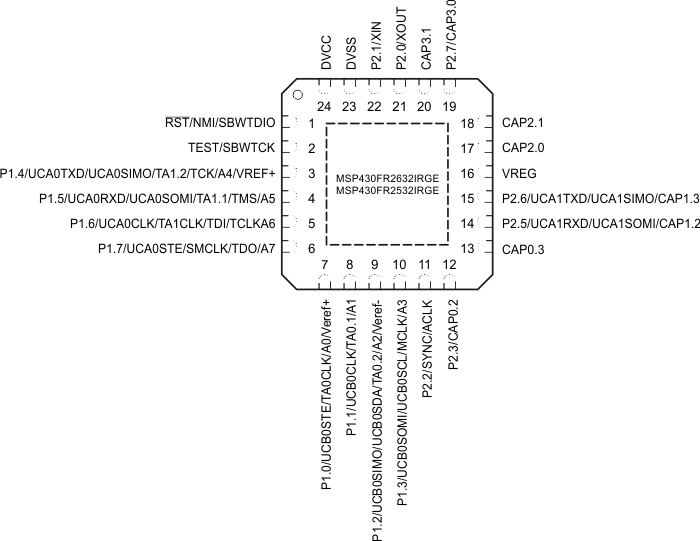

MSP430FR2633 MSP430FR2632 MSP430FR2533 MSP430FR2532 SLAS942_PINOUT_QFN24.gifFigure 4-3 24-Pin RGE Package (Top View)

Figure 4-4 shows the top view of the YQW package, and Figure 4-5 shows the bottom (ball-side) view.

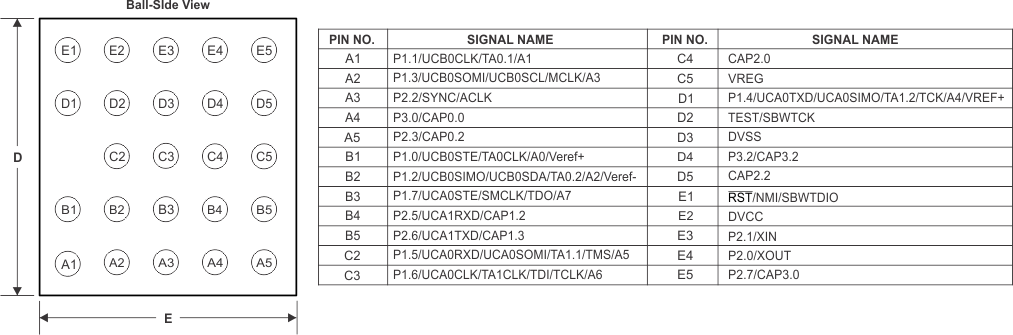

MSP430FR2633 MSP430FR2632 MSP430FR2533 MSP430FR2532 SLAS942__PINOUT_DSBGA_TOPCP_YQW.gifFigure 4-4 24-Pin YQW Package (Top View)
MSP430FR2633 MSP430FR2632 MSP430FR2533 MSP430FR2532 SLAS942__PINOUT_DSBGA_BTCP_YQW.gifFigure 4-5 24-Pin YQW Package (Bottom View)
