3 说明

MCT8316A 为需要高速运行（高达 3kHz 电气）或极快启动速度（< 50ms）的客户提供了一个单芯片无代码无传感器梯形解决方案，此解决方案适用于峰值电流高达 8A 的 12V 至 24V 无刷直流电机。MCT8316A 集成了三个 1/2H 桥，具有 40V 的绝对最大电压和 95mΩ 的超低 RDS(ON)（高侧 + 低侧）。可调降压稳压器和 LDO 的电源管理系列能够为器件生成 3.3V 或 5.0V 电压轨，可用于为外部电路供电。

无传感器梯形控制功能具有很高的可配置性，通过寄存器设置 (MCT8316AV) 或硬件引脚 (MCT8316AT) 完成，范围从电机启动行为到闭环运行。MCT8316AV 的寄存器设置可在非易失性 EEPROM 中设置，从而允许器件在配置后独立运行。该器件通过 PWM 输入、模拟电压、可变频率方波或 I2C 命令接收速度命令。MCT8316A 集成多种保护特性，旨在出现故障事件时保护该器件、电机和系统。

器件信息(1)
器件型号 封装 封装尺寸（标称值）
MCT8316A1V VQFN (40) 7.00mm x 5.00mm
MCT8316A1T VQFN (40) 7.00mm × 5.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

参考文档：

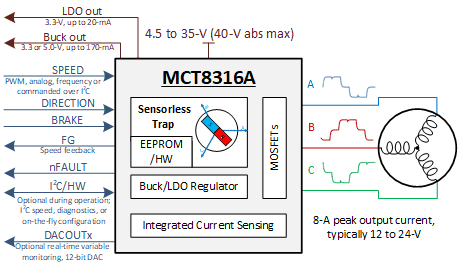

GUID-20211212-SS0I-MF6D-VML5-4BQ4613DWZGL-low.gif简化版原理图
