3 说明

LM25017 器件是一款 48V、650mA 同步降压稳压器，其集成了高侧和低侧金属氧化物半导体场效应晶体管 (MOSFET)。LM25017 器件所采用的恒定导通时间 (COT) 控制方案无需环路补偿，可提供出色的瞬态响应，并且可实现超高降压比。导通时间与输入电压成反比，这使得整个输入电压范围内的频率几乎保持恒定。高压启动稳压器为 IC 的内部运行以及集成栅极驱动器提供了偏置电源。

峰值电流限制电路可防止出现过载情况。欠压锁定 (UVLO) 电路支持对输入欠压阈值和迟滞进行单独编程。其他的保护特性包括：热关断和偏置电源欠压闭锁 (VCC UVLO)。

LM25017 器件采用 WSON-8 和 HSOP-8 塑料封装。

器件信息
器件型号 封装 封装尺寸（标称值）
LM25017 HSOP (8) 4.89mm x 3.90mm
WSON (8) 4.00mm x 4.00mm

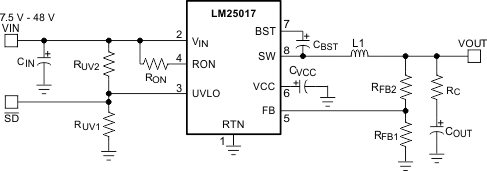

GUID-F3072108-3F9B-4451-B231-09C7DF2BCD7E-low.gif典型应用原理图
