9.2.2 Resistance Temperature Detector Interface

Figure 9-8 illustrates a 3-wire interface circuit for resistance temperature detectors (RTDs). The circuit incorporates analog linearization and has an output voltage range from 0 V to 5 V. The linearization technique employed is described in Analog linearization of resistance temperature detectors analog application journal. Series and parallel combinations of standard 1% resistor values are used to achieve less than 0.02°C of error over a 200°C temperature span.

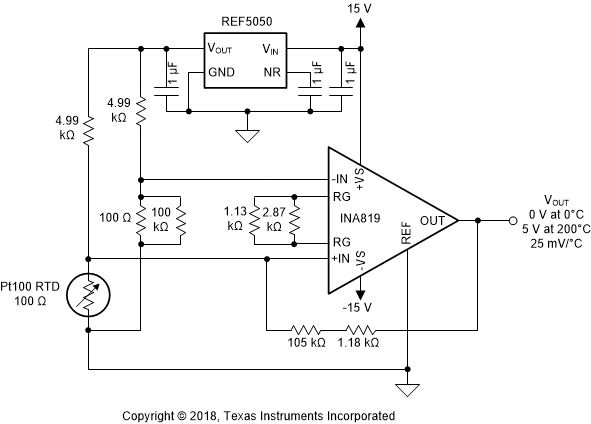

GUID-5CA500A1-1F80-483B-A35A-2D37E9BF6EC4-low.gifFigure 9-8 A 3-Wire Interface for RTDs With Analog Linearization
GUID-8111AEE7-761F-4A80-AFFC-449F56B64E48-low.gifFigure 9-9 Transfer Function of a 3-Wire RTD Interface
GUID-654D5AD2-66D9-4515-8767-6D73B20B3ACD-low.gifFigure 9-10 Temperature Error Over the Full Temperature Range
