6.6 Typical Characteristics

At TA = +25 °C, VS = +5 V, VIN+ = 12 V, and VREF = VS / 2, unless otherwise noted.




Figure 6-1 Input Offset Voltage Production Distribution



Figure 6-3 Common-Mode Rejection Production Distribution



Figure 6-5 Gain Error Production Distribution (Gain = 25 V/V)



Figure 6-7 Gain Error Production Distribution (Gain = 100 V/V)



Figure 6-9 Gain Error vs. Temperature
VCM = 0 VVREF = 2.5 VVSENSE = 0 mV, Shorted
VS = 5 V + 250-mV Sine Disturbance
Figure 6-11 Power-Supply Rejection Ratio vs. Frequency

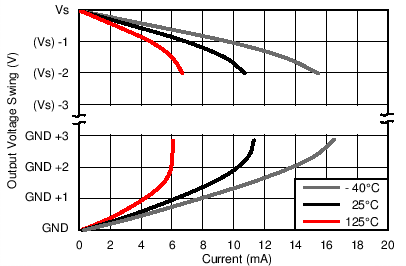

Figure 6-13 Output Voltage Swing vs Output Current



Figure 6-15 Input Bias Current vs. Common-Mode Voltage (Supply Voltage = +5 V)
VS = 5 VVCM = 12 V
Figure 6-17 Input Bias Current vs. Temperature



Figure 6-19 Quiescent Current vs. Supply Voltage
VS = ± 2.5 VVCM = 0 VVSENSE = 0 mV, Shorted
Figure 6-21 0.1-Hz to 10-Hz Voltage Noise (Referred-to-Input)



Figure 6-23 Step Response (Gain = 50 V/V, 2-VPP Output Step)





Figure 6-25 Step Response (Gain = 200 V/V, 2-VPP Output Step)
VDIFF = 20 mV VOUT at 25-V/V Gain = 500 mV
VOUT at 100-V/V Gain = 2 V
Figure 6-27 Gain Change Output Response (Gain = 25 V/V to 100 V/V)
VDIFF = 20 mV VOUT at 100-V/V Gain = 2 V
VOUT at 200-V/V Gain = 4 V
Figure 6-29 Gain Change Output Response (Gain = 100 V/V to 200 V/V)



Figure 6-31 Gain Change Output Response From Saturation (Gain = 100 V/V to 25 V/V)

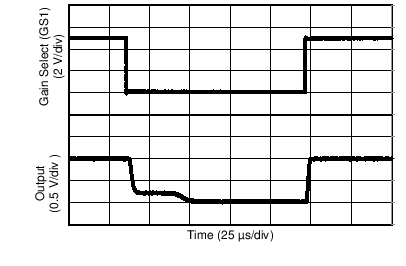

Figure 6-33 Gain Change Output Response From Saturation (Gain = 200 V/V to 100 V/V)



Figure 6-35 Start-Up Response



Figure 6-2 Input Offset Voltage vs. Temperature



Figure 6-4 Common-Mode Rejection Ratio vs. Temperature



Figure 6-6 Gain Error Production Distribution (Gain = 50 V/V)



Figure 6-8 Gain Error Production Distribution (Gain = 200 V/V)
VCM = 0 VVSENSE = 15 mVPP
Figure 6-10 Gain vs. Frequency
VS = 5 VVREF = 2.5 VVSENSE = 0 mV, Shorted
VCM = 1-V Sine Wave
Figure 6-12 Common-Mode Rejection Ratio vs. Frequency
Unidirectional, REF = GNDBidirectional, REF > GND
Figure 6-14 Unidirectional Output Voltage Swing vs. Temperature



Figure 6-16 Input Bias Current vs. Common-Mode Voltage (Supply Voltage = 0 V, Shutdown)



Figure 6-18 Quiescent Current vs. Temperature
VS = ± 2.5 VVREF = 0 VVSENSE = 0 mV, Shorted
Figure 6-20 Input-Referred Voltage Noise vs. Frequency



Figure 6-22 Step Response (Gain = 25 V/V, 2-VPP Output Step)



Figure 6-24 Step Response (Gain = 100 V/V, 2-VPP Output Step)
VDIFF = 20 mV VOUT at 25-V/V Gain = 500 mV
VOUT at 50-V/V Gain = 1 V
Figure 6-26 Gain Change Output Response (Gain = 25 V/V to 50 V/V)
VDIFF = 20 mV VOUT at 50-V/V Gain = 1 V
VOUT at 200-V/V Gain = 4 V
Figure 6-28 Gain Change Output Response (Gain = 50 V/V to 200 V/V)





Figure 6-30 Gain Change Output Response From Saturation (Gain = 50 V/V to 25 V/V)



Figure 6-32 Gain Change Output Response From Saturation (Gain = 200 V/V to 50 V/V)

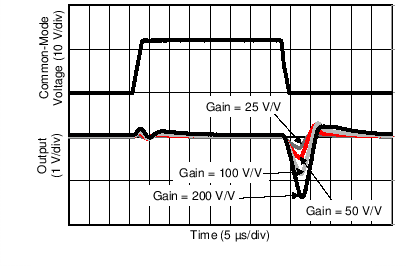

Figure 6-34 Common-Mode Voltage Transient Response
