6.17 Video Input Pixel Interface – Image Sync and Blanking Requirements

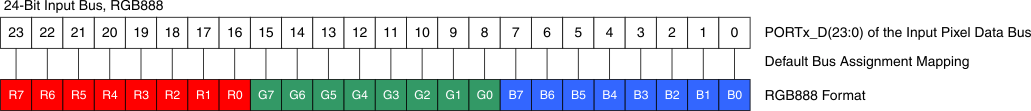

Figure 13 shows how pixels should be mapped to the input data bus for both port 1 and port 2.
PARAMETER MIN MAX UNIT
tp_vsw Vertical sync duration 1 clocks
tp_vbp Vertical back porch 14 lines
tp_vfp Vertical front porch 2 lines
tp_hsw Horizontal sync duration 1 clocks
tp_hbp Horizontal back porch 64 clocks
tp_hfp Horizontal front porch 75 clocks
DLPC200 pixelmapping_lps014.gifFigure 13. Pixel Mapping
