6.12 Serial Flash Interface Timing Requirements

The DLPC200 controller flash memory interface consists of a SPI flash serial interface at 33.3 MHz (nominal).
PARAMETER MIN MAX UNIT
ƒclock Clock frequency, CFG_CLK dc 33 MHz
tp_clkper Clock period, CFG_CLK 30.03 ns
tp_wh Pulse duration low, CFG_CLK 6 ns
tp_wl Pulse duration high, CFG_CLK 6 ns
tp_su Setup time – CFG_ASDI/CFG_ASDO valid before CFG_CLK rising edge 2 ns
tp_h Hold time – CFG_ASDI/CFG_ASDO valid after CFG_CLK rising edge 5 ns

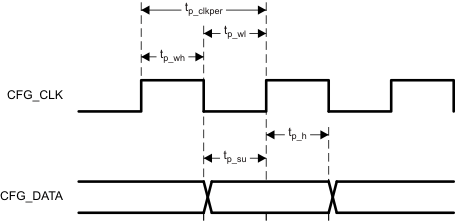

DLPC200 FMIT_LPS014.gifFigure 8. Flash Memory Interface Timing
