6.6 Video Input Pixel Interface Timing Requirements

PARAMETER TEST CONDITIONS MIN MAX UNIT
ƒpclock Clock frequency, PORTx_CLK 80 MHz
tp_wh Pulse duration, high 45% to 55% reference points (signal) 5.6 ns
tp_wl Pulse duration, low 45% to 55% reference points (signal) 5.6 ns
tp_su Setup time, PORTx_D(23–0) valid before PORTx_CLK See (1) 1.5 ns
tp_h Hold time, PORTx_D(23–0) valid after PORTx_CLK See (1) 1.5 ns
tp_su Setup time, PORTx_VSYNC valid before PORTx_CLK See (1) 1.5 ns
tp_h Hold time, PORTx_VSYNC valid after PORTx_CLK See (1) 1.5 ns
tp_su Setup time, PORTx_HSYNC valid before PORTx_CLK See (1) 1.5 ns
tp_h Hold time, PORTx_HSYNC valid after PORTx_CLK See (1) 1.5 ns
tp_su Setup time, PORTx_IVALID valid before PORTx_CLK See (1) 1.5 ns
tp_h Hold time, PORTx_IVALID valid after PORTx_CLK See (1) 1.5 ns
(1) PCLK may be inverted from that shown in Figure 1. In that case, the same specifications in the table are valid except now referenced to the falling edge of the clock. If the falling edge of PCLK is used, a USB or SPI command must be sent to tell the DLPC200 to use the falling edge of PCLK.

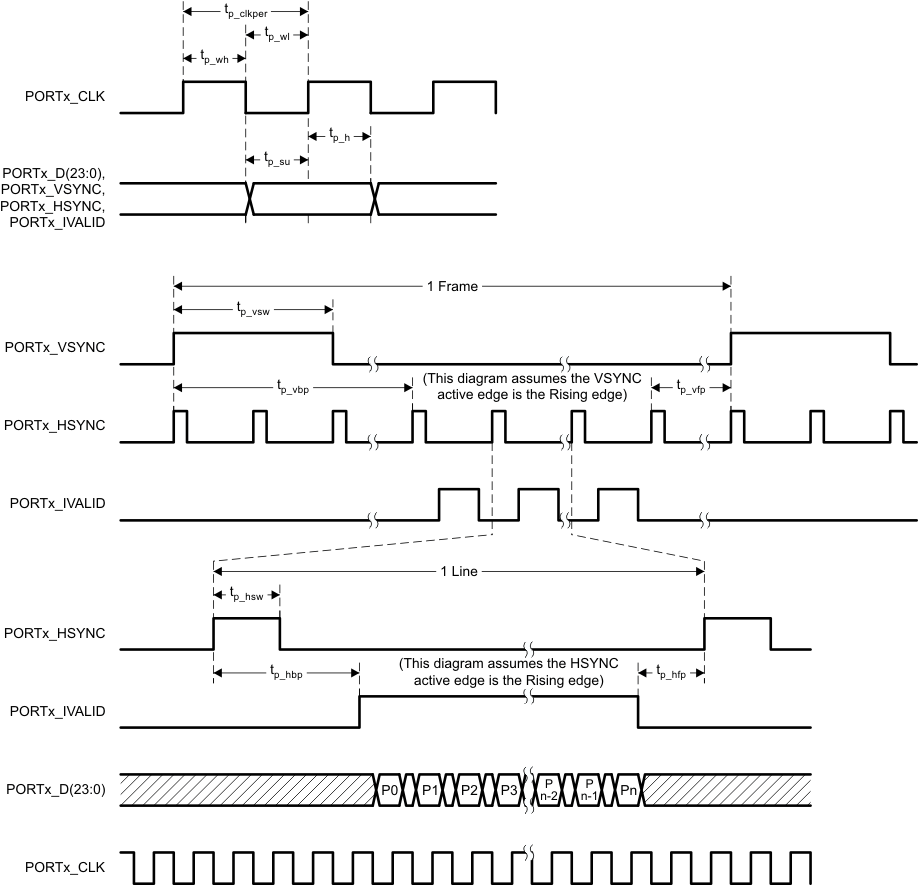

DLPC200 port2inputint_lps014.gifFigure 1. Input Port Interface

See Pin Configuration and Functions for the proper connection schema if a video input port will not be used.
