6.8 USB Read Interface Timing Requirements

PARAMETER MIN TYP MAX UNIT
tCL 1 / CLKOUT frequency 20.8 ns
tAV Delay from clock to valid address 10.7 ns
tSTBL Clock to USB_RDY0 LOW 11 ns
tSTBH Clock to USB_RDY0 HIGH 11 ns
tSCSL Clock to USB_PA02 LOW 13 ns
tDSU Data setup to clock 9.6 ns
tDH Data hold time 0 ns
tACC1 Valid USB_PA04 to valid USB_FDC 43 ns

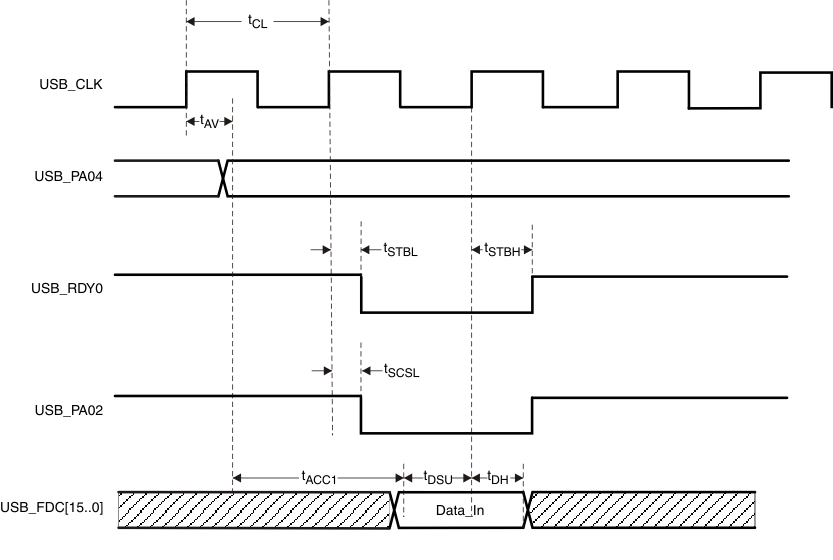

DLPC200 usb_read_lps014.gifFigure 3. USB Read Timing
