6.16 DDR2 SDR Memory Interface Timing Requirements

PARAMETER MIN MAX UNIT
tCYCLE Cycle time reference 5 8 ns
tCH CK high pulse duration(1) 2.4 4.16 ns
tCL CK low pulse duration(1) 2.4 4.16 ns
tCMS Command setup 200 ps
tCMH Command hold 275 ps
tAS Address setup 400 ps
tAH Address hold 400 ps
tDS Write data setup 1.5 ns
tDH Write data hold 1.5 ns
tAC Read data access time –450 450 ps
tOH Read data hold time 340 ps
tLZ Read data low-impedance time –900 450 ps
tHZ Read data high-impedance time 450 ps
(1) Output setup/hold numbers already account for controller clock jitter. Only routing skew and memory setup/hold need be considered in system timing analysis.

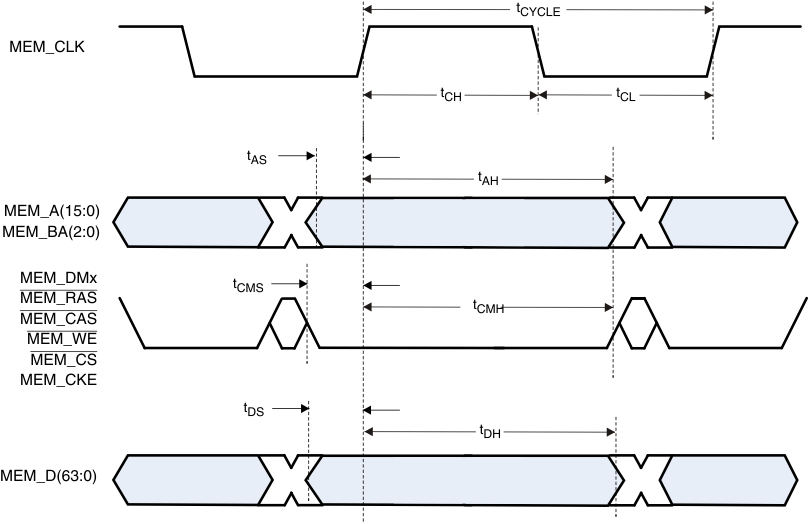

DLPC200 sdram_write_lps014.gifFigure 11. SDR Memory I/F Write Timing

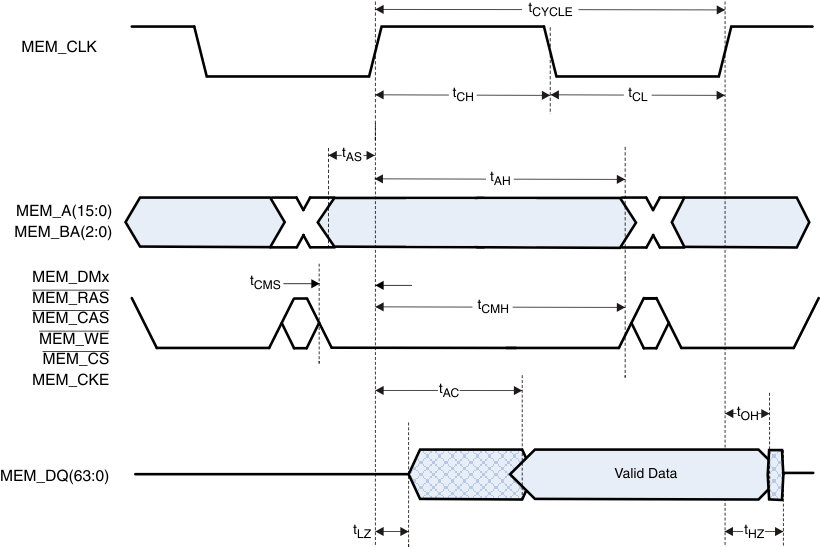

DLPC200 sdram_read_lps014.gifFigure 12. SDR Memory I/F Read Timing
