6.14 DMD Interface Timing Requirements

The DLPC200-DMD interface consists of a 200 MHz (nominal) DDR output-only interface with LVDS signaling.
PARAMETER MIN TYP MAX UNIT
ƒclock Clock frequency, DCLK_A and DCLK_B 200 MHz
tp_clkper Clock period, DCLK_A and DCLK_B 5 ns
tp_wh Pulse duration low, DCLK_A and DCLK_B 1.25 ns
tp_wl Pulse duration high, DCLK_A and DCLK_B 1.25 ns
tskew Channel B relative to channel A –1.25 1.25 ns
tp_su Output setup time – D_A(0:15) and D_B(0:15) relative to both rising and falling edges of DCLK_A and DCLK_B, respectively 0.35 ns
tp_h Output hold time – D_A(0:15) and D_B(0:15) relative to both rising and falling edges of DCLK_A and DCLK_B, respectively 0.35 ns

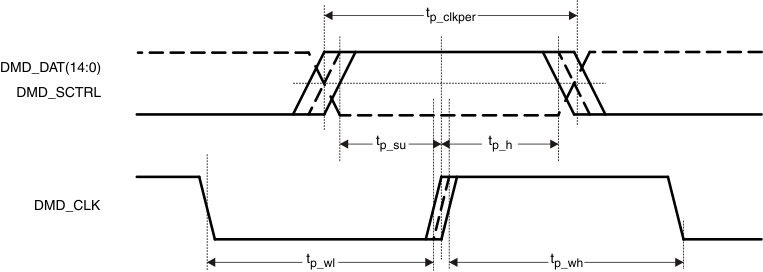

DLPC200 dmd_lps014.gifFigure 9. DMD I/F Timing
