7.1 Pin Diagram – RGZ Package (Top View)

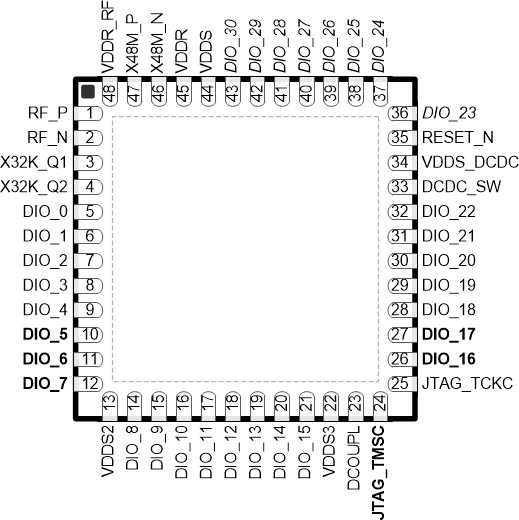

GUID-F399AB09-D0E5-4270-B3DE-E9A45B7E85F5-low.gif Figure 7-1 RGZ (7-mm × 7-mm) Pinout, 0.5-mm Pitch (Top View)

The following I/O pins marked in Figure 7-1 in bold have high-drive capabilities:

  • Pin 10, DIO_5
  • Pin 11, DIO_6
  • Pin 12, DIO_7
  • Pin 24, JTAG_TMSC
  • Pin 26, DIO_16
  • Pin 27, DIO_17

The following I/O pins marked in Figure 7-1 in italics have analog capabilities:

  • Pin 36, DIO_23
  • Pin 37, DIO_24
  • Pin 38, DIO_25
  • Pin 39, DIO_26
  • Pin 40, DIO_27
  • Pin 41, DIO_28
  • Pin 42, DIO_29
  • Pin 43, DIO_30
