7.4.4 Power-Down Mode

Power-down mode shuts down the entire ADC circuitry and reduces the total power consumption close to zero. To enter power-down mode, hold the PDWN pin low. Power-down mode also resets the entire circuitry to free the ADC circuitry from locking up to an unknown state. Power-down mode can be initiated at any time during readback; not all 24 bits of data must be retrieved beforehand. Figure 7-14 shows the wake-up timing from power-down mode.

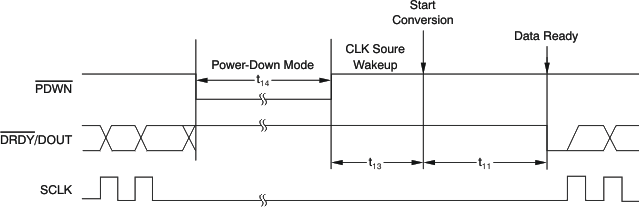

ADS1232 ADS1234 Wake-Up Timing From Power-Down Mode Figure 7-14 Wake-Up Timing From Power-Down Mode
Table 7-12 Timing Requirements for Figure 7-14
PARAMETER MIN TYP UNIT
t13 Wake-up time after power-down mode Internal clock 7.95 µs
External clock 0.16 µs
Crystal oscillator(1) 5.6 ms
t14(2) PDWN pulse duration 26 µs
(1) No capacitors on CLKIN/XTAL1 or XTAL2 outputs.
(2) Value given for fCLK = 4.9152 MHz. For different fCLK frequencies, the scale is proportional to the CLK period except for a ±3% variation when an internal oscillator is used.
