5.16 Typical Characteristics

Measurements are taken at 25°C.

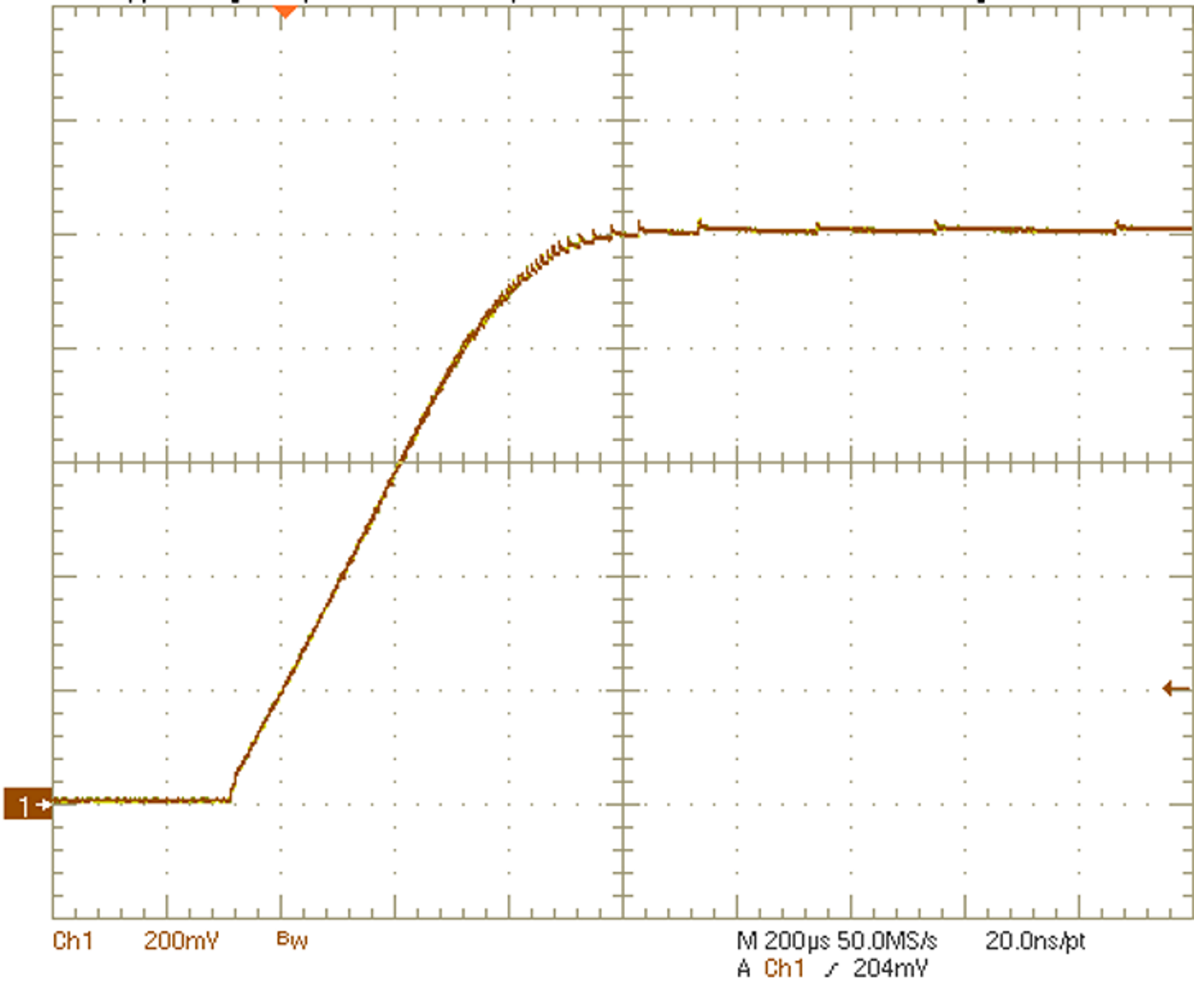

TPS650861 Example BUCK2 Controller Start-Up
FET = CSD87588N L = PIMB061H-R22ms
BUCK2_MODE = 0b COUT = 2 × 150µF + 1 × 22µF
Figure 5-1 Example BUCK2 Controller Start-Up
TPS650861 Example BUCK1 Efficiency at VIN = 13V In Auto Mode
FET = CSD87381P L = PIMB061H-R47ms
BUCK1_MODE = 0b
Figure 5-3 Example BUCK1 Efficiency at VIN = 13V In Auto Mode
TPS650861 Example BUCK1 Efficiency at VIN = 18V In Auto Mode
FET = CSD87381P L = PIMB061H-R47ms
BUCK1_MODE = 0b
Figure 5-5 Example BUCK1 Efficiency at VIN = 18V In Auto Mode
TPS650861 Converter Load Current Limitations with VIN = 3.3V
L = PIFE32251B-R47ms
Figure 5-7 Converter Load Current Limitations with VIN = 3.3V
TPS650861 Controller Switching Frequency (Forced PWM Mode)
FET = CSD87381P L = PIMB061H-R47ms
BUCK1_MODE = 1b
Figure 5-9 Controller Switching Frequency (Forced PWM Mode)

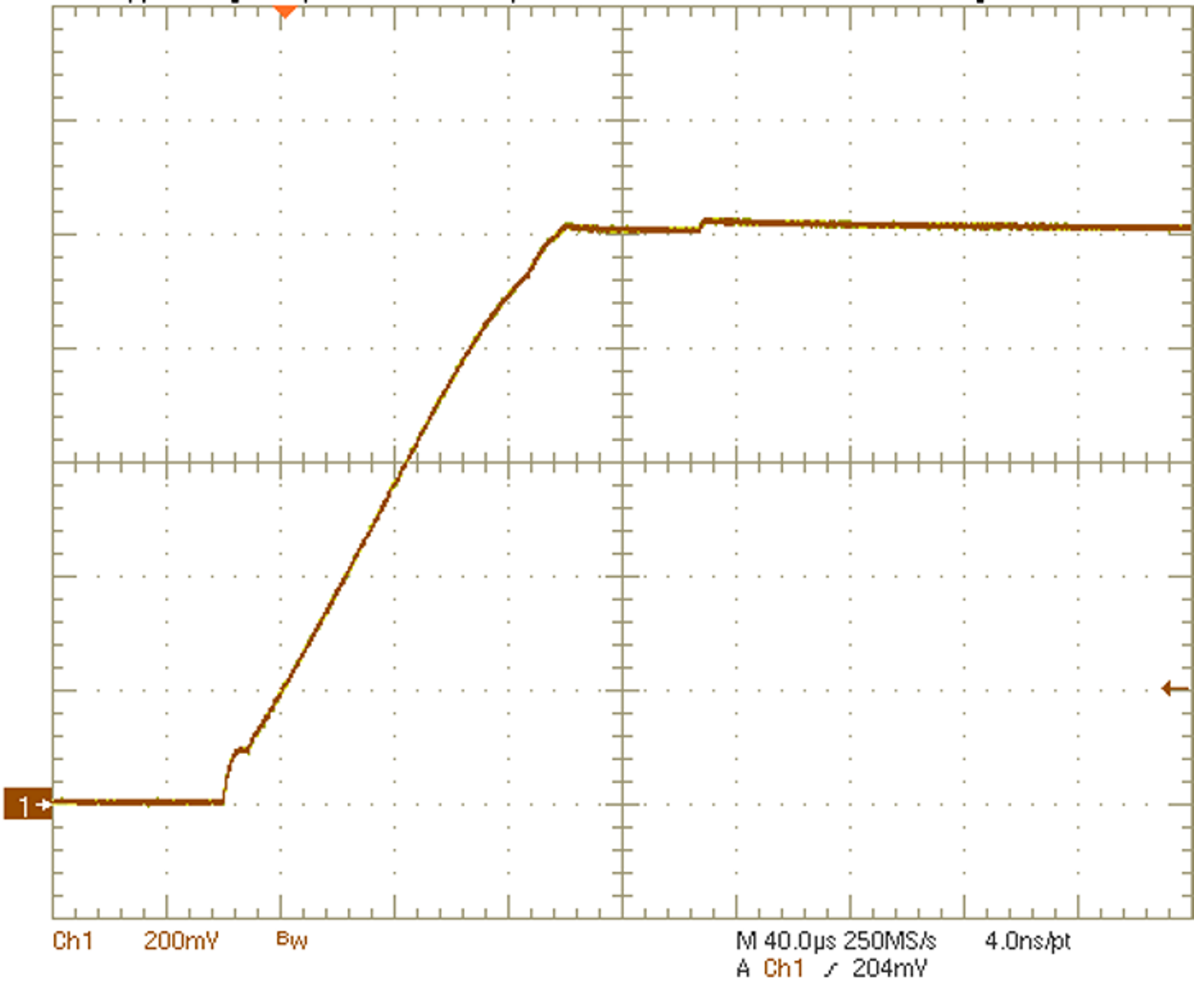

TPS650861 Example BUCK3 Converter Start-Up
BUCK3_MODE = 0b L = PIFE32251B-R47ms
COUT = 4 × 22µF
Figure 5-2 Example BUCK3 Converter Start-Up

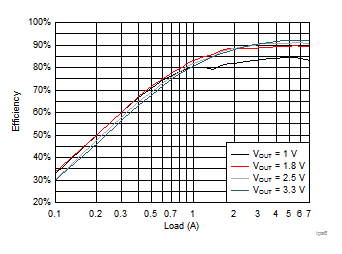

TPS650861 Example BUCK1 Efficiency at VIN = 13V in Forced PWM Mode
FET = CSD87381P L = PIMB061H-R47ms
BUCK1_MODE = 1b
Figure 5-4 Example BUCK1 Efficiency at VIN = 13V in Forced PWM Mode
TPS650861 Example BUCK3 Efficiency at VIN = 5V
L = PIFE32251B-R47ms
Figure 5-6 Example BUCK3 Efficiency at VIN = 5V
TPS650861 VTT LDO Regulation
FBVOUT6 = PVINVTT = 1.35V
Figure 5-8 VTT LDO Regulation

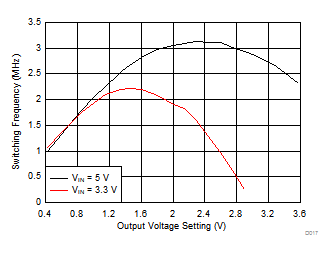

TPS650861 Converter Switching Frequency
L = PIFE32251B-R47ms
Figure 5-10 Converter Switching Frequency
