5.11 Modular Mode

When used in modular mode as shown in Figure 5-7, the power is supplied through a single USB connector; the same USB connector J5 is also used for data transfer through the CP2015 USB to UART converter. When enumerated correctly, the 2 UART ports are displayed on the device manager as a Virtual COM Port, similar to that shown in Figure 5-6.

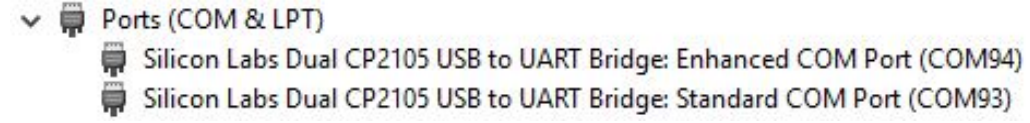

GUID-20211118-SS0I-MK1R-HKLS-BHMLZBSRMW0H-low.png Figure 5-6 Virtual COM Port

The SICP2105 drivers must be installed to access the UART port. Download and install the drivers here.

GUID-20211115-SS0I-ZM21-RBF2-3FJ7M21HTWXF-low.jpg Figure 5-7 EVM in Functional Mode Using Standalone Operation
GUID-20211118-SS0I-X2CM-NMDT-67CDXFL9HBDN-low.png Figure 5-8 EVM in Flashing Mode Using Standalone Operation

The enhanced COM port is the application/user UART and the standard COM port is the data port.

The S1 switch setting for functional and flashing mode is shown in Table 5-5.

Table 5-5 S1 Swtch Setting for Functional and Flashing Mode
S1.1 S1.2 S1.3 S1.4 S1.5 S1.6
Flashing On Off On On Off -
Functional Off Off On On Off -
