Raw ADC Data Capture Using MMWAVEICBOOST and DCA1000 EVMs

This mode enables raw data capture using the DCA1000 EVM via MMWAVEICBOOST. MMWAVEICBOOST supports higher current and camera mount options.

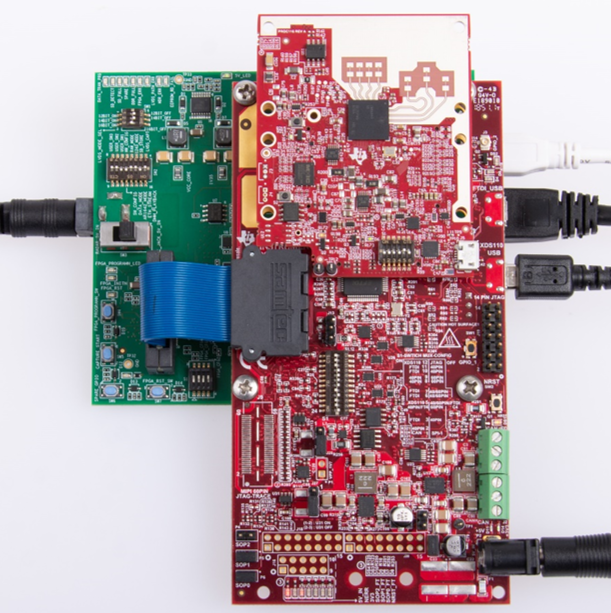

GUID-20211122-SS0I-JMTK-PPT3-CW1WHP8K0DKQ-low.png Figure 5-11 mmWAVEICBOOST With DCA1000 Mode
