The IWR6843LEVM includes four receivers and three transmitters wide field of antennas on the FR4 PCB substrate.

The IWR6843 operates at a 4-GHz bandwidth from 60 to 64 GHz. The IWR6843LEVM has an antenna gain of ~5-6 dBi across different antenna pairs.

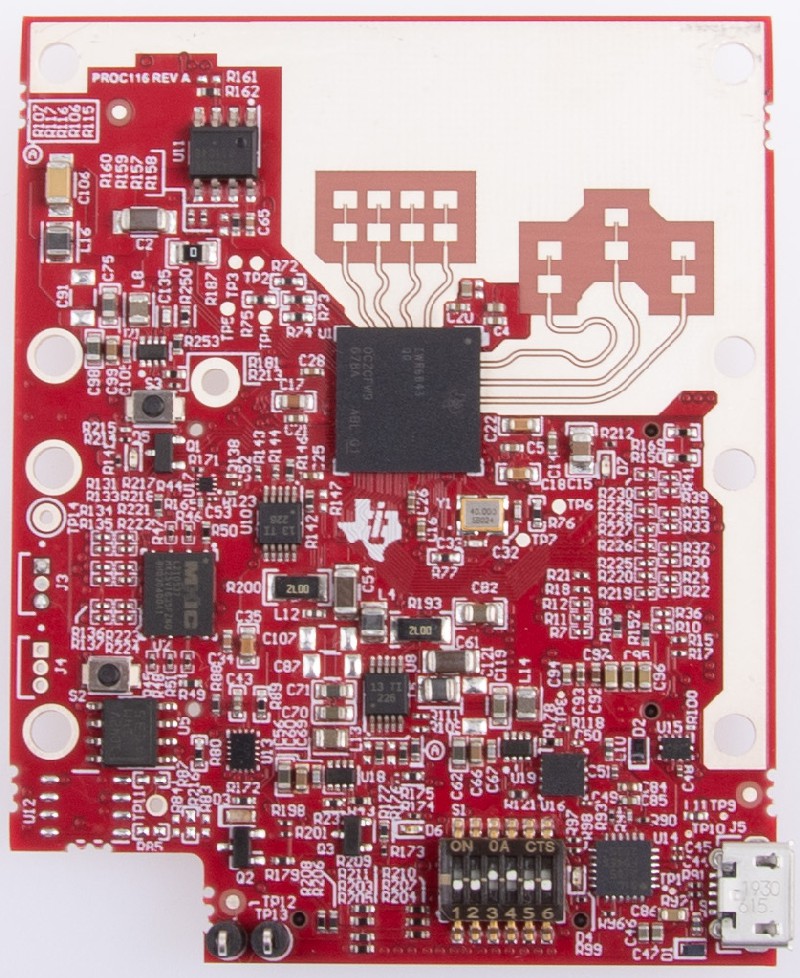

GUID-20211115-SS0I-QWP9-BS0L-B4ST5S6R4KTP-low.jpg Figure 2-1 IWR6843LEVM Top View

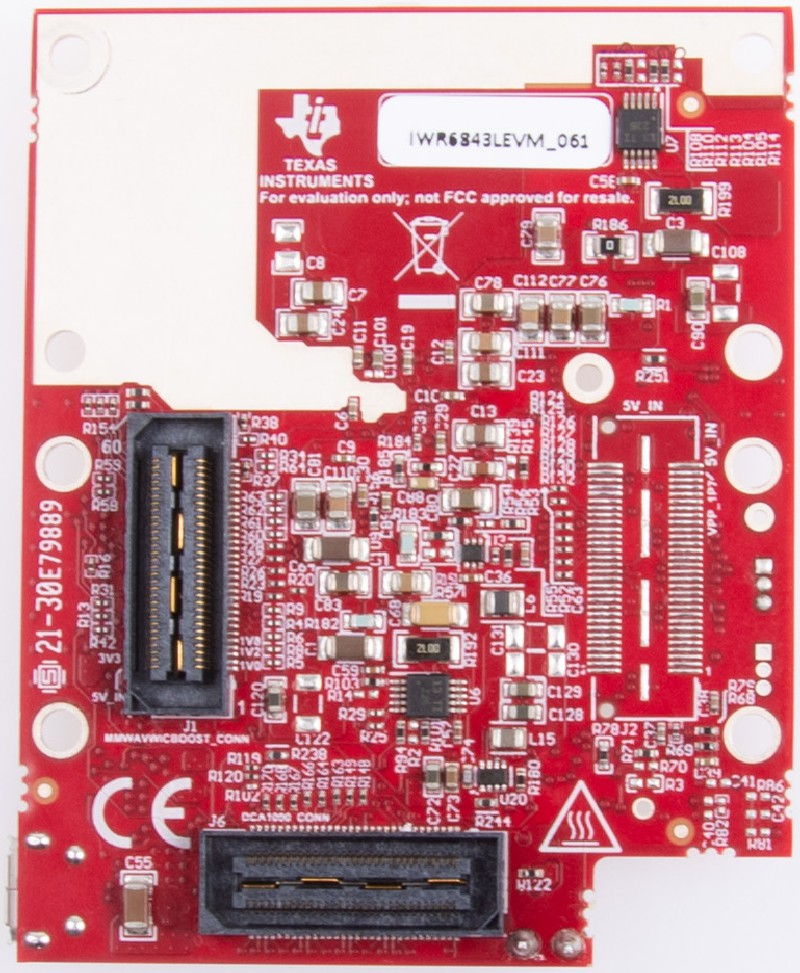

GUID-20211115-SS0I-9CJQ-X7S9-KNV4VZW4LZG0-low.jpg Figure 2-2 IWR6843LEVM Bottom View

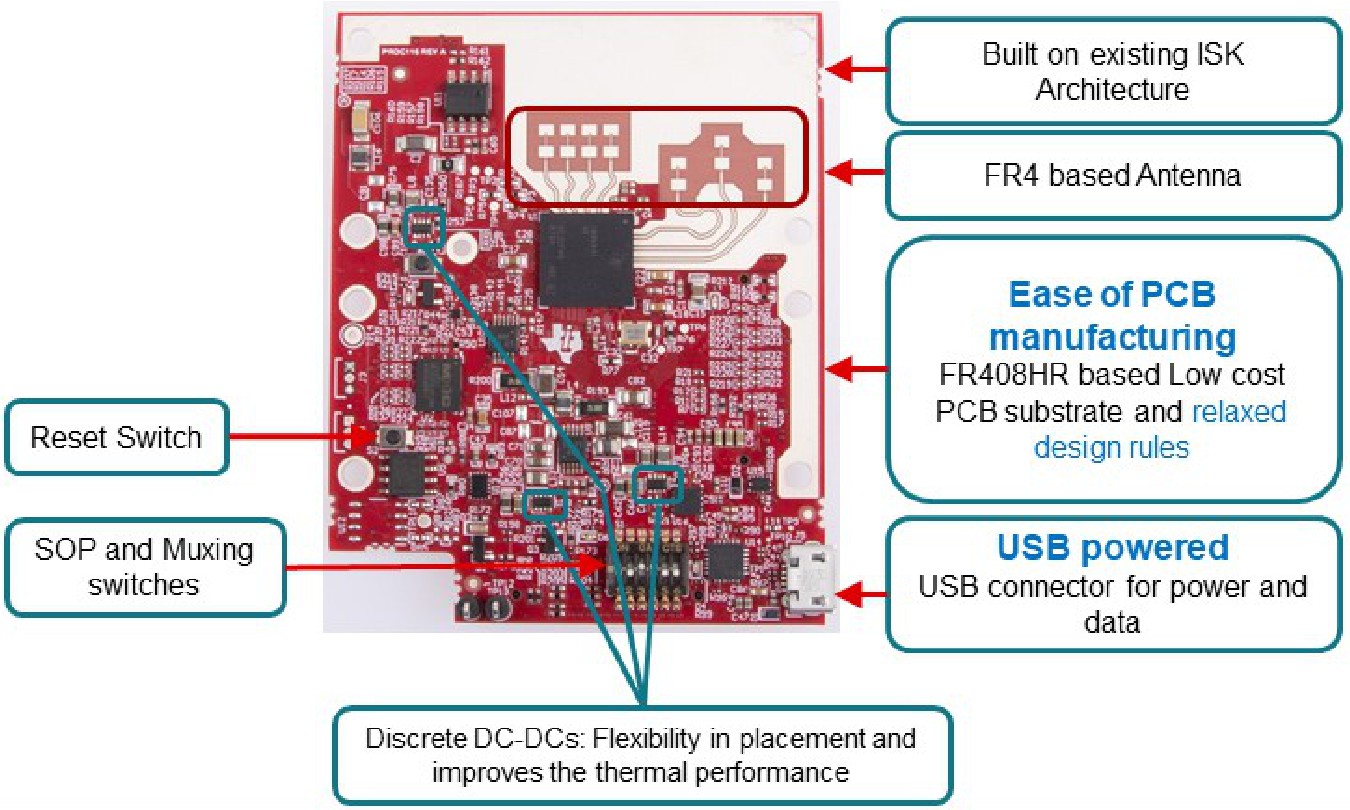

GUID-20211109-SS0I-6M3X-5KZB-GVKTHWJDBVKB-low.jpg Figure 2-3 Salient features of EVM (top side)

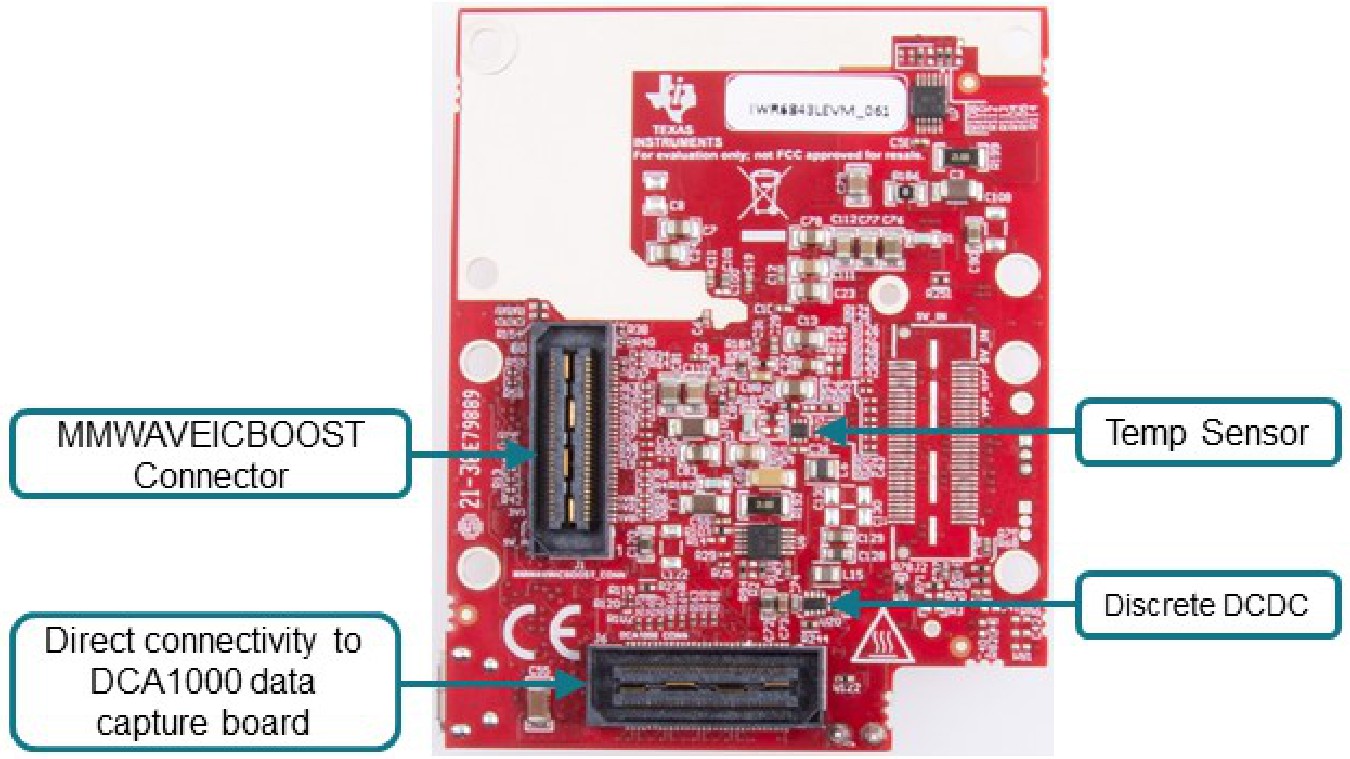

GUID-20211109-SS0I-TQFN-FZ07-GP6MG9WXCLNG-low.jpg Figure 2-4 Salient features of EVM (bottom side)
