5.13 DCA1000EVM Mode

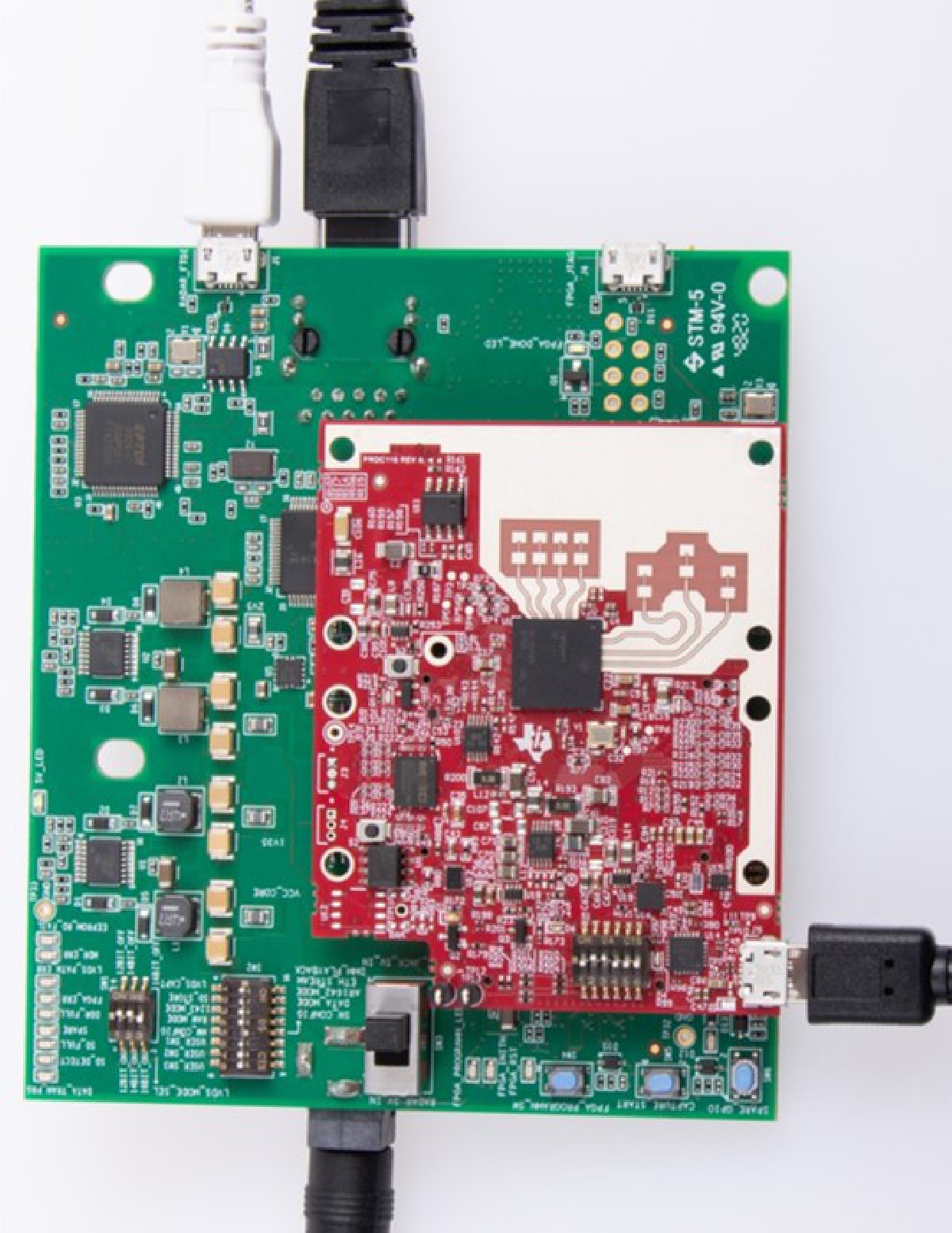

The setup for raw data capture using DCA1000EVM is shown in Figure 5-9.

GUID-20211115-SS0I-GJXL-1JCP-TBZK3JGHMQB0-low.jpg Figure 5-9 DCA1000EVM Mode

S1 switch settings for this mode is shown in Table 5-6.

Table 5-6 S1 Configuration for DCA1000EVM Mode
S1.1 S1.2 S1.3 S1.4 S1.5 S1.6
DCA1000EMV mode Off On On Off Off -
