PLAN

SpinTAC Plan provides easy design and execution of complex motion sequences. The trajectory planning feature allows users to quickly build various states of motion (speed or position A to speed or position B) and tie them together with state-based logic. SpinTAC Plan can be used to implement a motion sequence for nearly any application. Figure 3-4 displays the motion sequence for a washing machine and Figure 3-5 displays the motion sequence for a garage door. Both of these were easily designed using SpinTAC Plan. Once designed, the trajectories are directly embedded into the C code on the microcontroller.

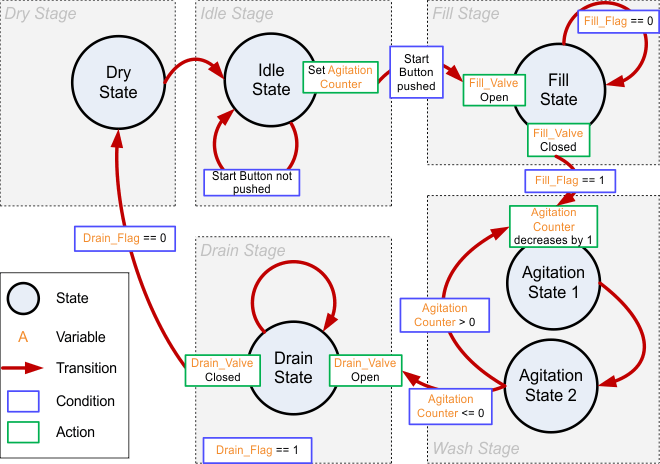

GUID-06AB50B8-681B-4D8C-BFD2-4581DB52094C-low.gif Figure 2-4 State Transition Map for a Washing Machine
GUID-1483C576-2B0E-4121-A774-14312C1F3D7E-low.gif Figure 2-5 State Transition Map for a Garage Door System
