2.2.4 Chemistry Screen

The chemistry file contains parameters that the simulations use to model the cell and the operating profile. Program a Chemistry ID that matches the cell into the device. Some of these parameters can be viewed in the Data Flash section of the Battery Management Studio.

Press the Chemistry button to select the Chemistry window.

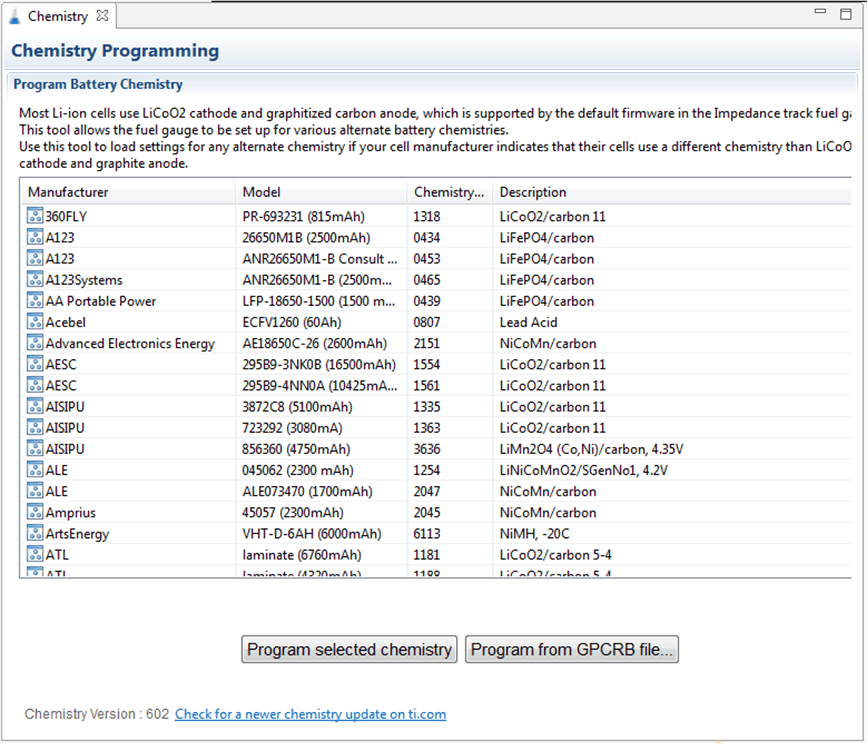

BQ40Z80EVM-020 Chemistry Screen Figure 2-5 Chemistry Screen
  • The table can be sorted by clicking the desired column. for example: Click the Chemistry ID column header.
  • Select the ChemID that matches your cell from the table (see Figure 2-5).
  • Press the Update Chemistry in the Data Flash button to update the chemistry in the device.
