6.7 Typical Characteristics

GUID-20201108-CA0I-0PQW-VVPN-HZNG8LL48Z1R-low.gifFigure 6-1 Output Current vs Supply Voltage

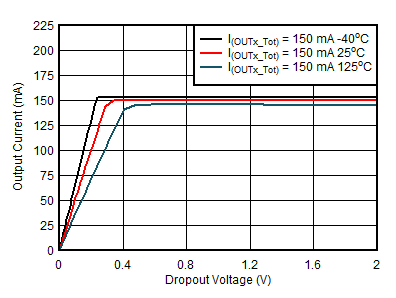

GUID-20201109-CA0I-1SGB-VBXN-FQ9TPJZDNF4P-low.gifFigure 6-3 Output Current vs Dropout Voltage

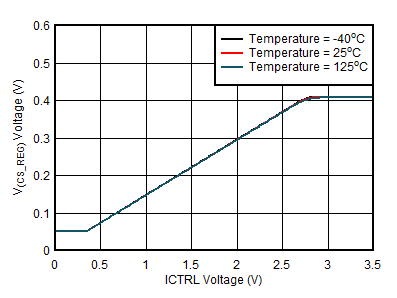

GUID-20201109-CA0I-RFFH-LSXC-K0NLLVCFD9RB-low.gifFigure 6-5 V(CS_REG) vs ICTRL Voltage
Ch1 = V(SUPPLY) Ch2 = V(EN) Ch3 = V(PWM1)
Ch4 = V(OUT1) Ch5 = I(OUT_Tot)
Figure 6-7 Power Up Sequency
Ch1 = V(SUPPLY) Ch2 = V(EN) Ch3 = V(PWM1)
Ch4 = V(OUT1) Ch5 = I(OUT_Tot)

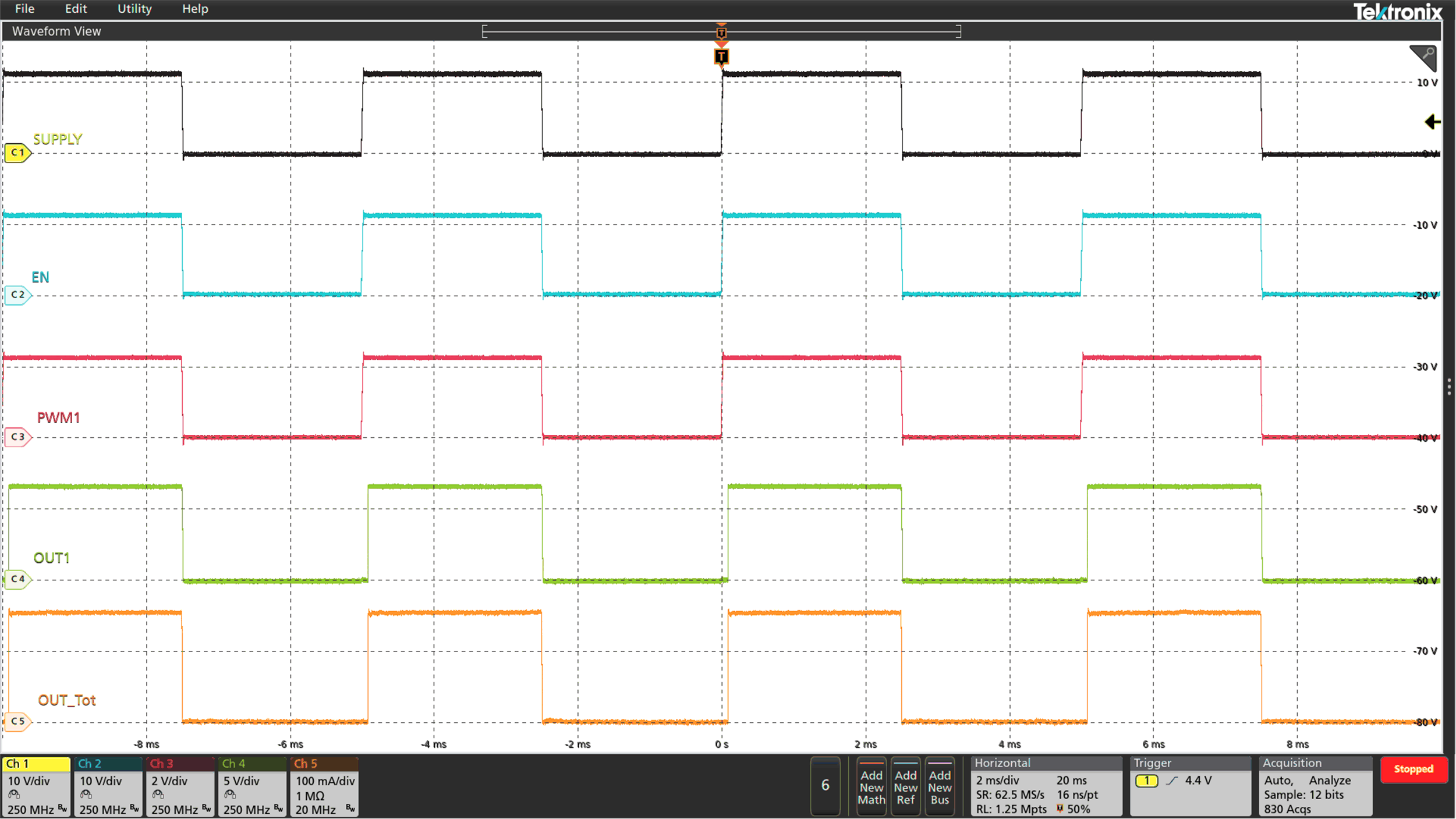

Figure 6-9 PWM Dimming at 200 Hz
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot)

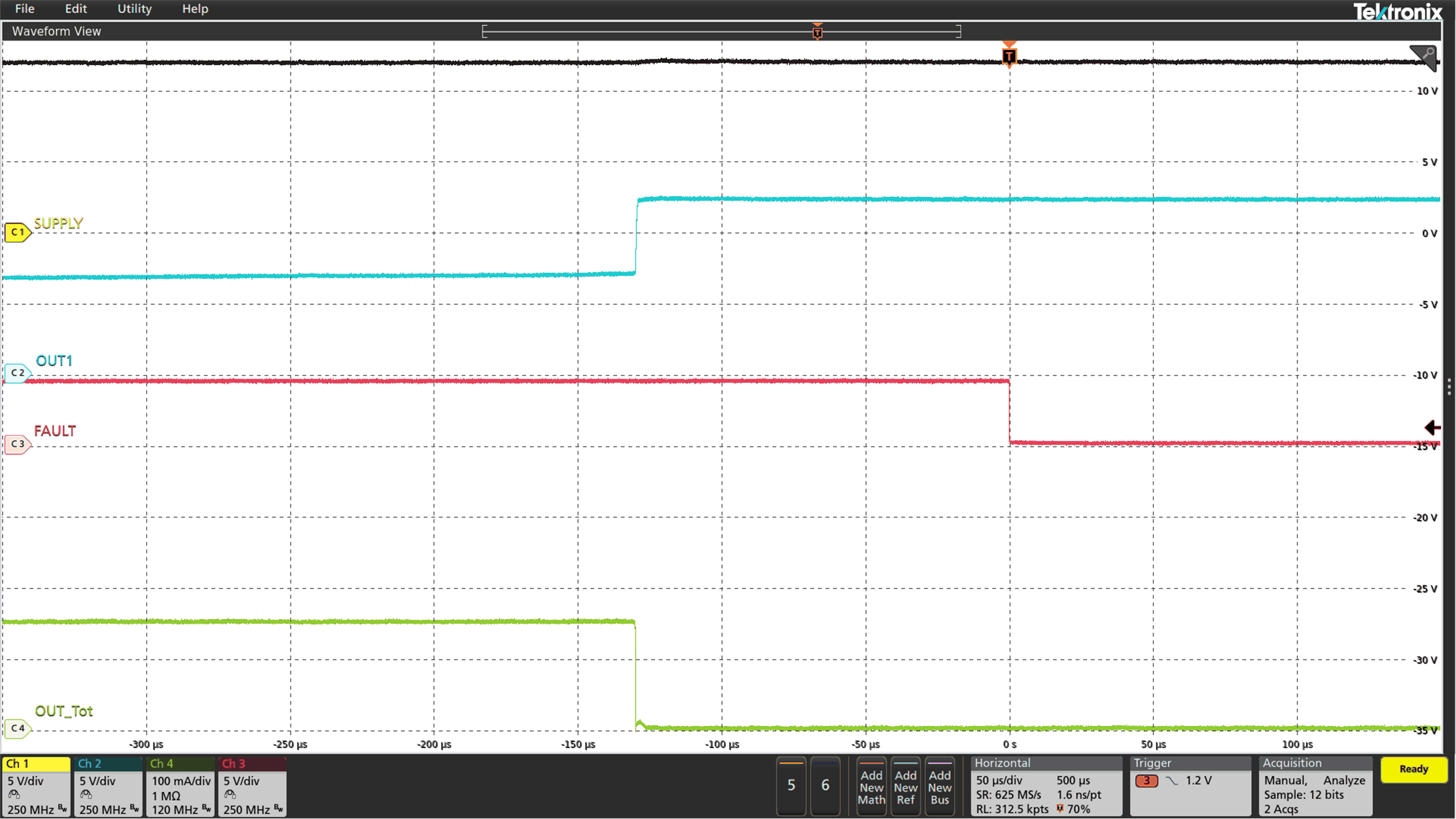

Figure 6-11 LED Open Protection
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot)
Figure 6-13 LED Short-Circuit Protection
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot)
Figure 6-15 Single LED Short-Circuit Protection
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot) DIAGEN = High
Figure 6-17 Transient Undervoltage
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot) DIAGEN = High
Figure 6-19 Slow Decrease and Quick Increase of Supply Voltage
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot) DIAGEN = High

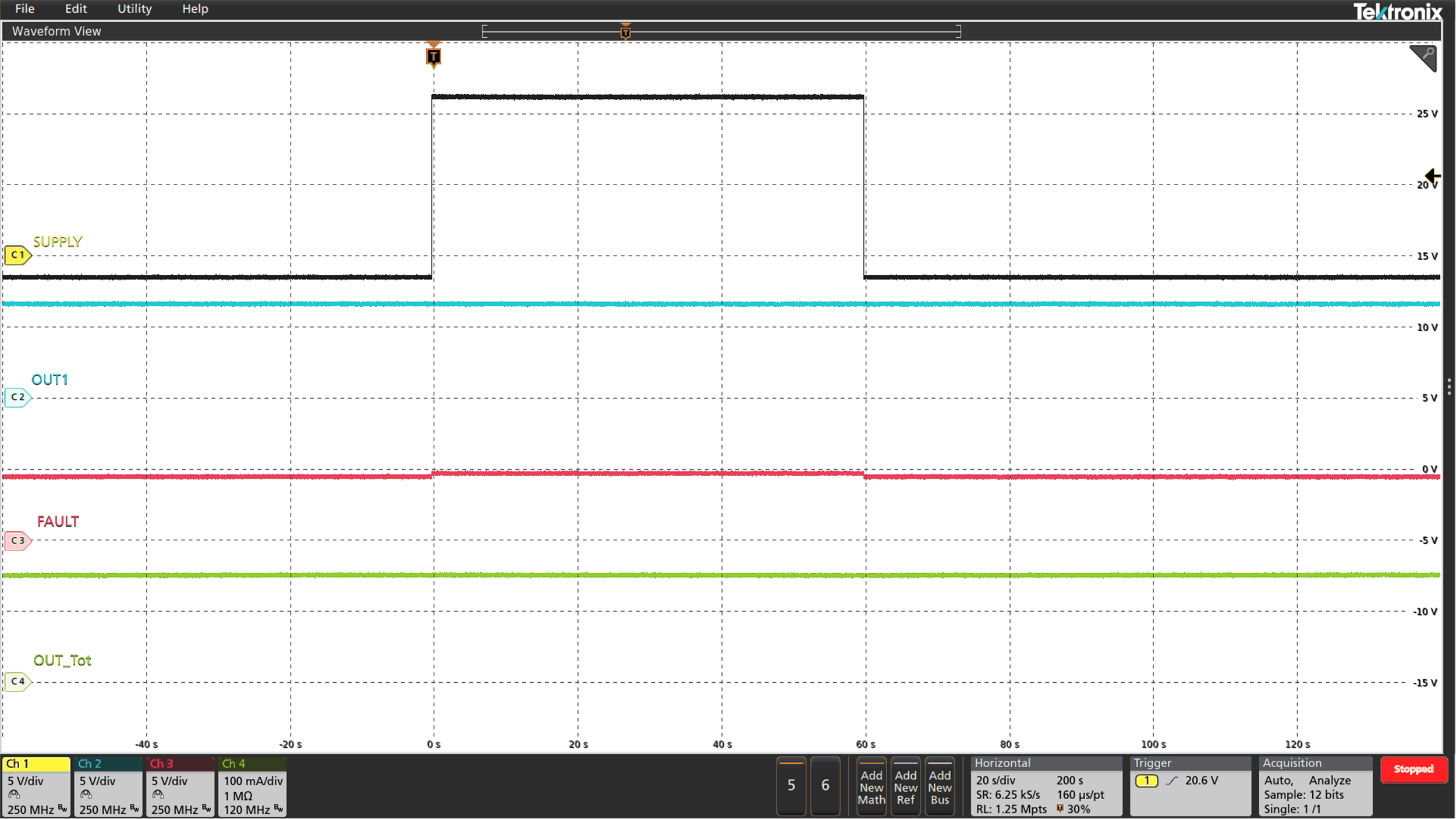

Figure 6-21 Superimposed Alternating Voltage 15 Hz
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot) DIAGEN = High
Figure 6-23 Jump Start

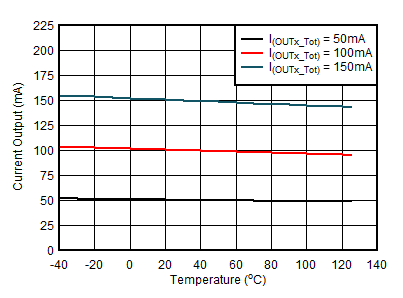

GUID-20201111-CA0I-TB2X-28XW-GVGT35CLCWDV-low.gifFigure 6-2 Output Current vs Temperature

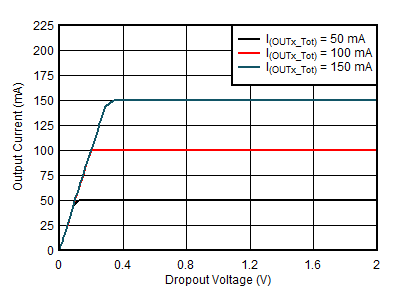

GUID-20201109-CA0I-CRXL-SZGC-FLMJLJ2TNV3H-low.gifFigure 6-4 Output Current vs Dropout Voltage
GUID-20201109-CA0I-6C7R-DXKQ-4RB9HCBWS2PZ-low.gifFigure 6-6 PWM Output Duty Cycle vs PWM Input Duty Cycle
Ch1 = V(SUPPLY) Ch2 = V(EN) Ch3 = V(PWM1)
Ch4 = V(OUT1) Ch5 = I(OUT_Tot)
Figure 6-8 Supply Dimming at 200 Hz
Ch1 = V(SUPPLY) Ch2 = V(EN) Ch3 = V(PWM1)
Ch4 = V(OUT1) Ch5 = I(OUT_Tot)
Figure 6-10 PWM Dimming at 1 kHz
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot)

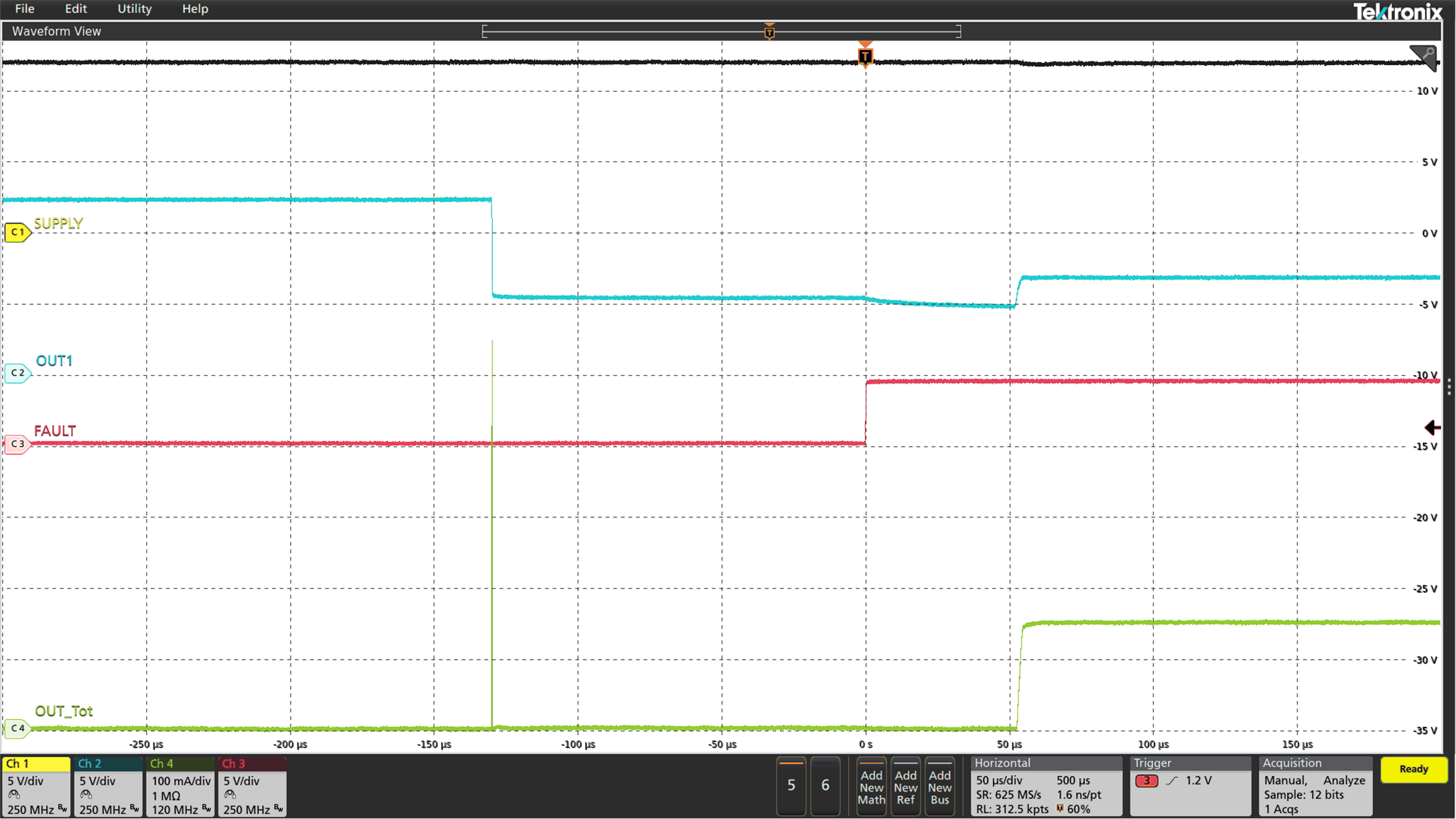

Figure 6-12 LED Open Protection Recovery
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot)

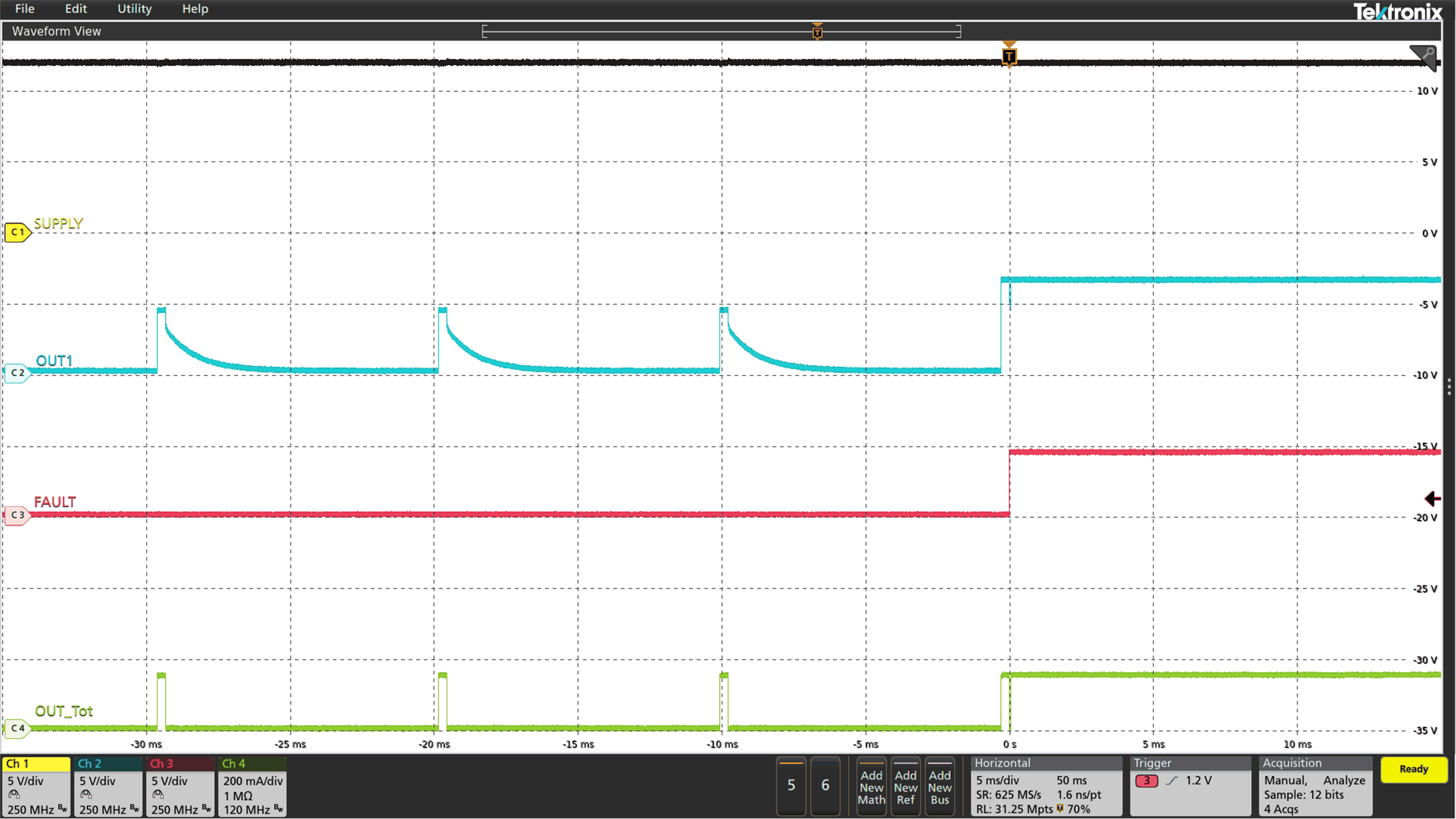

Figure 6-14 LED Short-Circuit Protection Recovery
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot)
Figure 6-16 Single LED Short-Circuit Protection Recovery
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot) DIAGEN = High
Figure 6-18 Transient Overvoltage
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot) DIAGEN = High

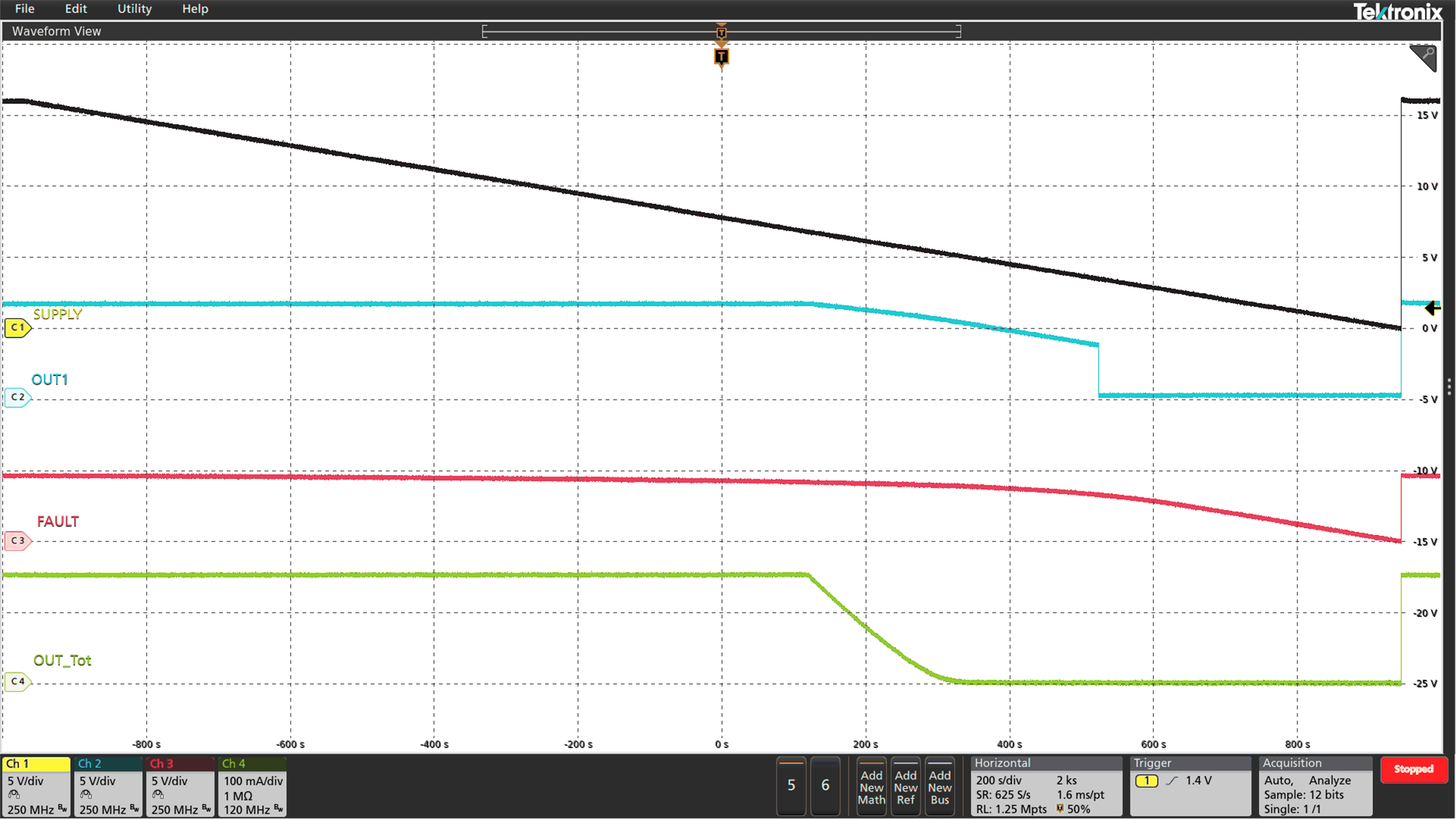

Figure 6-20 Slow Decrease and Slow Increase of Supply Voltage
Ch1 = V(SUPPLY) Ch2 = V(OUT1) Ch3 = V(FAULT)
Ch4 = I(OUT_Tot) DIAGEN = High
Figure 6-22 Superimposed Alternating Voltage 1 kHz
