Pin Configuration and Functions

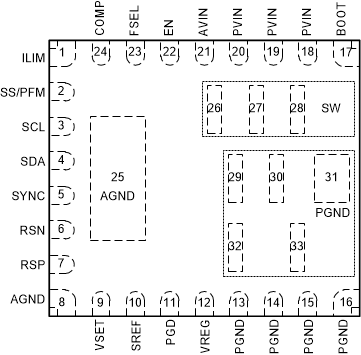

GUID-B05E7472-17D1-40A0-B05D-853C6E42B366-low.gif Figure 5-1 33-Pin VQFN RJM Package (Top View)
Table 5-1 Pin Functions
PIN I/O DESCRIPTION
NAME NO.
AGND 8, 25 G Ground of the internal analog and digital circuitry
AVIN 21 P Power input to the controller. Tie this pin to PVIN. It is best to use an RC filter from PVIN such as 10 Ω and 100 nF to 1 μF.
BOOT 17 P Gate drive voltage for high-side FET. Connect a bootstrap capacitor between this pin and SW.
COMP 24 I A resistor to ground sets the I2C address and compensation network. This pin can be grounded to select the default compensation and reduce BOM count.
EN 22 I Enable pin. Float to enable, enable/disable with an external signal, or adjust the input undervoltage lockout with a resistor divider.
FSEL 23 I A resistor to ground sets the switching frequency of the converter. This pin can be grounded to select the default switching frequency to reduce BOM count.
ILIM 1 I A resistor to ground sets the overcurrent protection limit. This pin can be grounded to select default settings and reduce BOM count.
PGD 11 O Open-drain power good status
PGND 13-16, 29-33 G Power ground. These pins are internally connected to the return of the internal low-side FET.
PVIN 18-20 P Power inputs to the power stage. Low impedance bypassing of these pins to PGND is critical. At least 10 nF to 100 nF capacitor from PVIN to PGND is required.
RSN 6 I Remote sense ground return
RSP 7 I Remote sense connection to VOUT
SCL 3 I Clock input for I2C programming
SDA 4 I/O Data input for I2C programming
SREF 10 O 1.2-V nominal system reference
SS/PFM 2 I A resistor to ground sets the soft-start slew rate and PFM mode. To reduce BOM count this pin can be grounded to use the default soft-start rate and enable PFM mode.
SYNC 5 I In shutdown mode, an active high puts the IC into programming mode. In operation, this pin is a clock input for synchronizing the oscillator.
SW 26-28 O Switch node output of the converter. Connect this pin to the output inductor.
VREG 12 I/O Bypass pin for the internal power stage LDO. It is recommended to use 4.7-μF ceramic capacitor to ground.
VSET 9 I Output voltage reference for the control loop. This must be the mid-point of a resistive divider from SREF to AGND. Set this voltage to be 1/5 of the desired VOUT.
