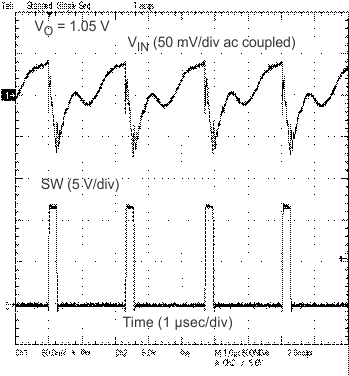

6.6 Typical Characteristics
VIN = 12 V, TA= 25°C (unless otherwise noted)
Figure 1. VIN Supply Current vs Junction Temperature
Figure 3. EN Input Current vs EN Input Voltage
Figure 5. Switching Frequency vs Input Voltage
Figure 7. VFB Voltage vs Ambient Temperature
Figure 9. Line Regulation

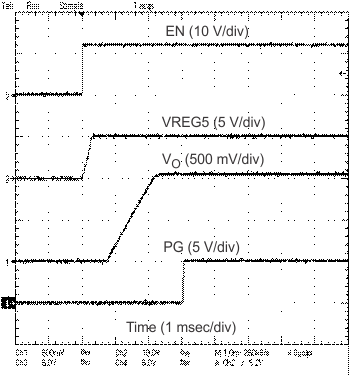

Figure 11. Start-Up Waveforms
Figure 13. Light Load Efficiency vs. Output Current
| IOUT = 50 mA |
| IOUT = 50 mA |

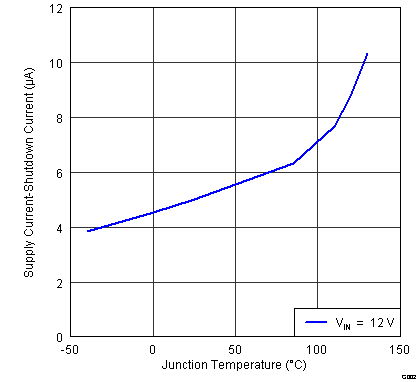

Figure 2. VIN Shutdown Current vs Junction Temperature
Figure 4. Switching Frequency vs Junction Temperature
Figure 6. VFB Voltage vs Input Voltage

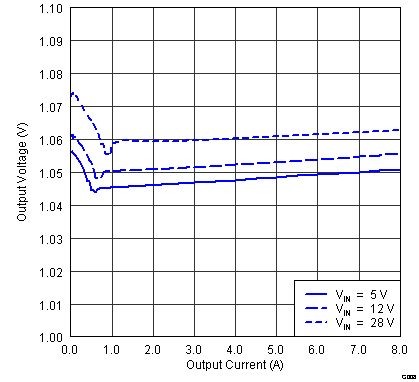

Figure 8. Load Regulation
Figure 10. Transient Response

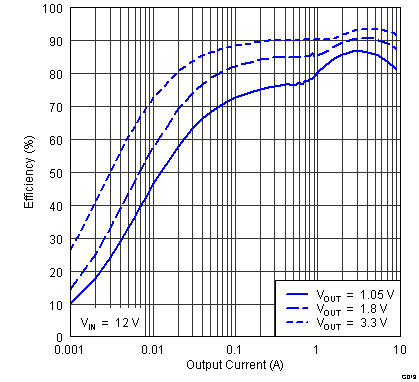

Figure 12. Efficiency vs. Output Current
| IOUT = 8 A |
| IOUT = 8 A |
