7.2 Typical Application

This example describes the design process for a very wide input (10 V to 60 V) to a regulated 5 V output at a load current of 6 A. The schematic shown in Figure 7-1 is configured for the design parameters provided in Table 7-1. Alternatively the WEBENCH software can be used to generate a complete design with the TPS40170.

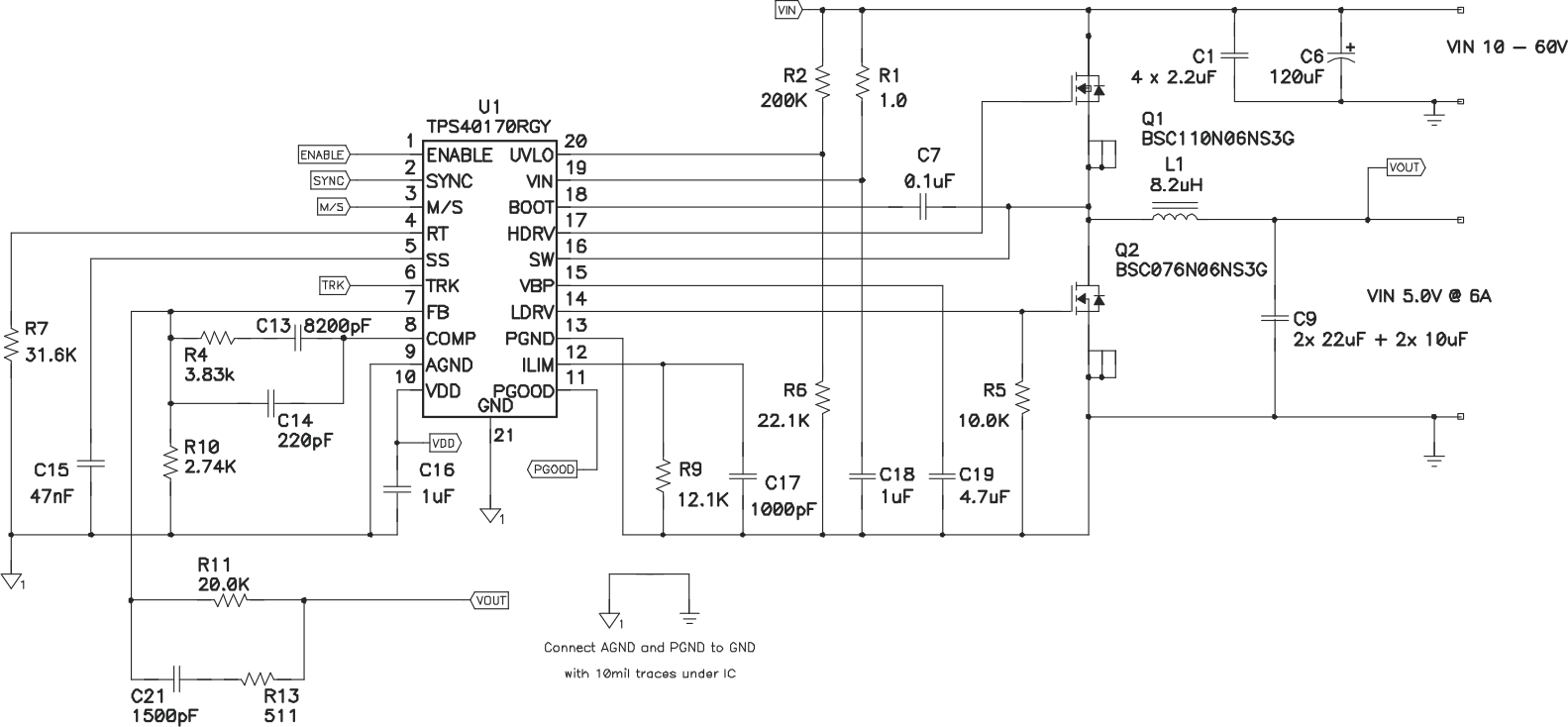

GUID-3794298A-2F0E-4491-BD65-784441A90A48-low.gif Figure 7-1 Typical Design Application
