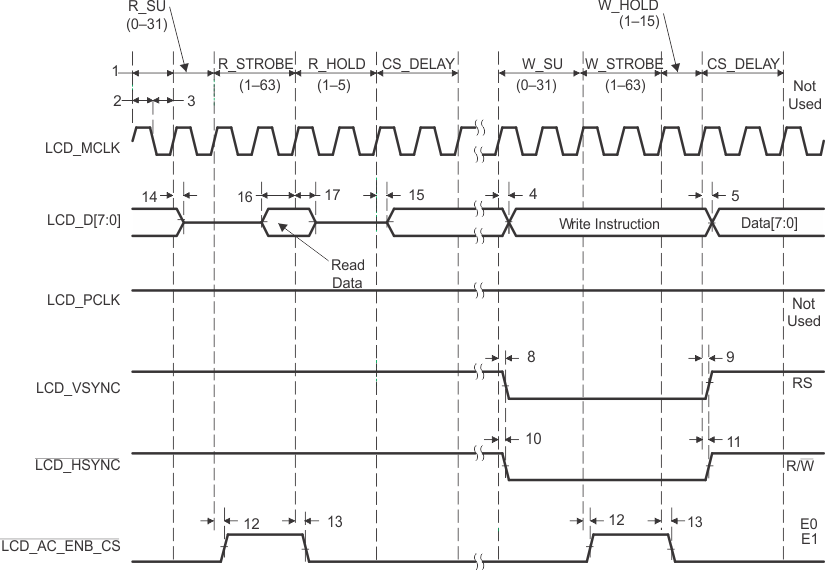

6.21.1 LCD Interface Display Driver (LIDD Mode)

Table 6-82 LCD LIDD Mode Timing Requirements

No. PARAMETER MIN MAX UNIT
16 tsu(LCD_D) Setup time, LCD_D[15:0] valid before LCD_MCLK high 7 ns
17 th(LCD_D) Hold time, LCD_D[15:0] valid after LCD_MCLK high 0.5 ns

Table 6-83 LCD LIDD Mode Timing Characteristics

No. PARAMETER MIN MAX UNIT
4 td(LCD_D_V) Delay time, LCD_MCLK high to LCD_D[15:0] valid (write) -0.5 10 ns
5 td(LCD_D_I) Delay time, LCD_MCLK high to LCD_D[15:0] invalid (write) -0.5 10 ns
6 td(LCD_E_A) Delay time, LCD_MCLK high to LCD_AC_ENB_CS low -0.5 7 ns
7 td(LCD_E_I) Delay time, LCD_MCLK high to LCD_AC_ENB_CS high -0.5 7 ns
8 td(LCD_A_A) Delay time, LCD_MCLK high to LCD_VSYNC low -0.5 8 ns
9 td(LCD_A_I) Delay time, LCD_MCLK high to LCD_VSYNC high -0.5 8 ns
10 td(LCD_W_A) Delay time, LCD_MCLK high to LCD_HSYNC low -0.5 8 ns
11 td(LCD_W_I) Delay time, LCD_MCLK high to LCD_HSYNC high -0.5 8 ns
12 td(LCD_STRB_A) Delay time, LCD_MCLK high to LCD_PCLK active -0.5 12 ns
13 td(LCD_STRB_I) Delay time, LCD_MCLK high to LCD_PCLK inactive -0.5 12 ns
14 td(LCD_D_Z) Delay time, LCD_MCLK high to LCD_D[15:0] in 3-state -0.5 12 ns
15 td(Z_LCD_D) Delay time, LCD_MCLK high to LCD_D[15:0] (valid from 3-state) -0.5 12 ns
TMS320C6745 TMS320C6747 lcd_44780_wr_prs377.gifFigure 6-47 Character Display HD44780 Write
TMS320C6745 TMS320C6747 lcd_44780_rd_prs377.gifFigure 6-48 Character Display HD44780 Read
TMS320C6745 TMS320C6747 lcd_6800_wr_prs377.gifFigure 6-49 Micro-Interface Graphic Display 6800 Write
TMS320C6745 TMS320C6747 lcd_6800_rd_prs377.gifFigure 6-50 Micro-Interface Graphic Display 6800 Read
TMS320C6745 TMS320C6747 lcd_6800_sts_prs377.gifFigure 6-51 Micro-Interface Graphic Display 6800 Status
TMS320C6745 TMS320C6747 lcd_8080_wr_prs377.gifFigure 6-52 Micro-Interface Graphic Display 8080 Write
TMS320C6745 TMS320C6747 lcd_8080_rd_prs377.gifFigure 6-53 Micro-Interface Graphic Display 8080 Read
TMS320C6745 TMS320C6747 lcd_8080_sts_prs377.gifFigure 6-54 Micro-Interface Graphic Display 8080 Status
