7.4.2 Layout Example

DVI connector trace matching is shown in Figure 7-7.

GUID-52DB5303-878B-4E18-894A-543B4E9F8343-low.png Figure 7-7 DVI Signal Routing

Keep the data lines as far as possible from each other as shown in Figure 7-8.

GUID-037B8911-1AE6-4055-A14D-78245D389699-low.png Figure 7-8 Data Signal Routing

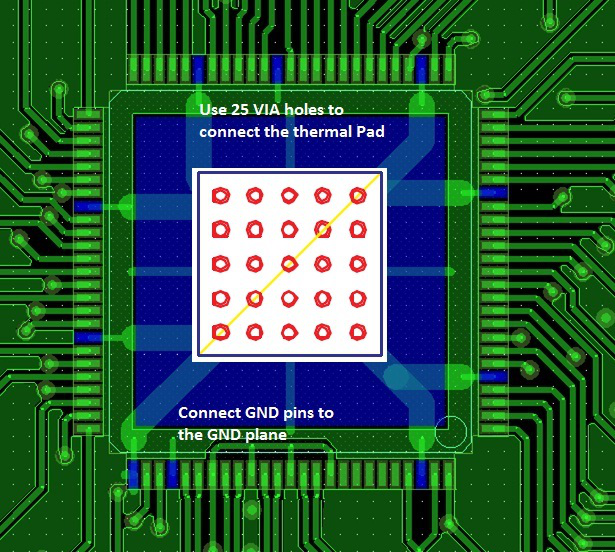

Connect the thermal pad to ground as shown in Figure 7-9.

GUID-889C9AAD-273E-427A-879B-CACBFA25D9B6-low.png Figure 7-9 Ground Routing
