5 Pin Configuration and Functions

Figure 5-1 OPA1677: D Package, 8-Pin SOIC (Top View)
GUID-94080CA9-28F9-4D96-8719-BC1CB4178FF2-low.gif Figure 5-2 OPA1677: DBV Package, 5-Pin SOT-23 (Top View)
Pin Functions: OPA1677
PIN TYPE DESCRIPTION
NAME NO.
D
(SOIC)		 DBV (SOT-23)
–IN 2 4 Input Inverting input
+IN 3 3 Input Noninverting input
OUT 6 1 Output Output
V– 4 2 Power Negative (lowest) power supply
V+ 7 5 Power Positive (highest) power supply
GUID-B475DB0F-B79E-44F0-A3F1-10E402582FFA-low.gif Figure 5-3 OPA1678: D Package, 8-Pin SOIC and DGK Package, 8-Pin VSSOP (Top View)
GUID-8CC6B519-47A1-422A-813E-E36B7A9DC330-low.gif Figure 5-4 OPA1678: DRG Package, 8-Pin SON With Exposed Thermal Pad (Top View)
Pin Functions: OPA1678
PIN TYPE DESCRIPTION
NAME NO.
–IN A 2 Input Inverting input, channel A
+IN A 3 Input Noninverting input, channel A
–IN B 6 Input Inverting input, channel B
+IN B 5 Input Noninverting input, channel B
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
V– 4 Power Negative (lowest) power supply
V+ 8 Power Positive (highest) power supply
Thermal Pad Thermal pad — For DRG (SON-8) package. Exposed thermal die pad on underside. Connect thermal die pad to V–. Solder the thermal pad to improve heat dissipation and provide specified performance.

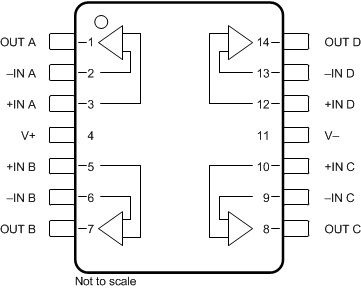

GUID-765896E2-755C-46E9-9DE1-BED94F3DF093-low.gifFigure 5-5 OPA1679: D Package, 14-Pin SOIC and
PW Package, 14-Pin TSSOP (Top View)
Figure 5-6 OPA1679: RUM Package, 16-Pin QFN With Exposed Thermal Pad (Top View)
Pin Functions: OPA1679
PIN TYPE DESCRIPTION
NAME NO.
D (SOIC)
PW (TSSOP)		 RUM (QFN)
–IN A 2 1 Input Inverting input, channel A
+IN A 3 2 Input Noninverting input, channel A
–IN B 6 5 Input Inverting input, channel B
+IN B 5 4 Input Noninverting input, channel B
–IN C 9 8 Input Inverting input, channel C
+IN C 10 9 Input Noninverting input, channel C
–IN D 13 12 Input Inverting input, channel D
+IN D 12 11 Input Noninverting input, channel D
NC — 13 — No connect
NC — 16 — No connect
OUT A 1 15 Output Output, channel A
OUT B 7 6 Output Output, channel B
OUT C 8 7 Output Output, channel C
OUT D 14 14 Output Output, channel D
V+ 4 3 Power Positive (highest) power supply
V– 11 10 Power Negative (lowest) power supply
Thermal Pad — Thermal pad — Exposed thermal die pad on underside. Connect thermal die pad to V–. Solder the thermal pad to improve heat dissipation and provide specified performance.
