Typical Characteristics

at TA = 25°C, VS = ±15 V, and RL = 2 kΩ, (unless otherwise noted)

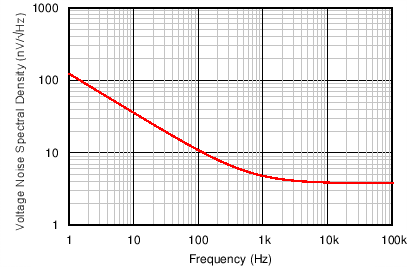

Figure 6-1 Input Voltage Noise Density vs Frequency

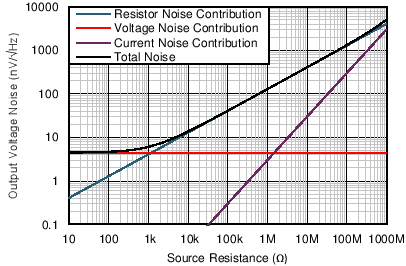

Figure 6-3 Voltage Noise vs Source Resistance
CL = 10 pF
Figure 6-5 Open-Loop Gain and Phase vs Frequency
VOUT = 3 VRMSRL = 2 kΩBandwidth = 80 kHz

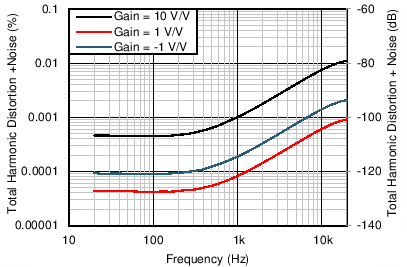

Figure 6-7 THD+N Ratio vs Frequency
f = 1 kHzRL = 2 kΩBandwidth = 80 kHz
Figure 6-9 THD+N Ratio vs Output Amplitude
VOUT = 3 VRMSGain = 1 V/V
Figure 6-11 Channel Separation vs Frequency
Gain = 1 V/VCL = 100 pF
Figure 6-13 Small-Signal Step Response (100 mV)
Gain = +1 V/VRF = 2 kΩCL = 100 pF
Figure 6-15 Large-Signal Step Response

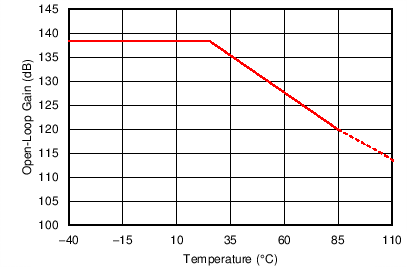

Figure 6-17 Open-Loop Gain vs Temperature

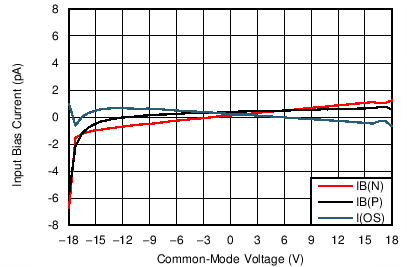

Figure 6-19 IB and IOS vs Common-Mode Voltage

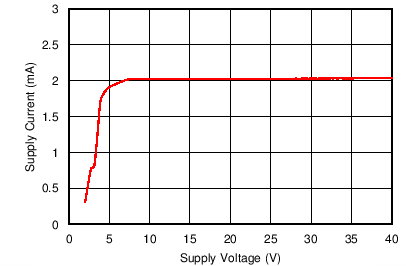

Figure 6-21 Supply Current vs Supply Voltage

Figure 6-23 Output Voltage vs Output Current (Sinking)
G = 1

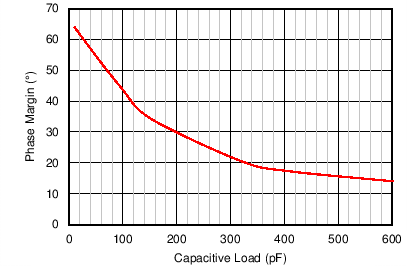

Figure 6-25 Phase Margin vs Capacitive Load
Gain = –10 V/V

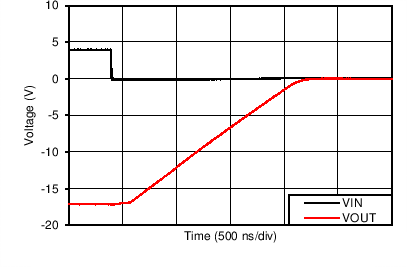

Figure 6-27 Negative Overload Recovery

Figure 6-29 Open-Loop Output Impedance vs Frequency

Figure 6-2 0.1-Hz to 10-Hz Noise

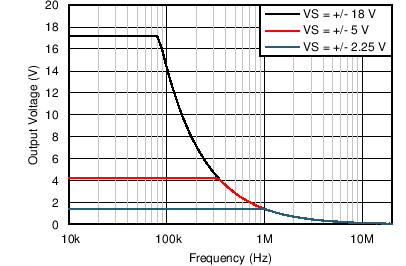

Figure 6-4 Maximum Output Voltage vs Frequency
CL = 10 pF
Figure 6-6 Closed-Loop Gain vs Frequency
VOUT = 3 VRMSRL = 600 ΩBandwidth = 80 kHz
Figure 6-8 THD+N Ratio vs Frequency
f = 1 kHzRL = 600 ΩBandwidth = 80 kHz
Figure 6-10 THD+N Ratio vs Output Amplitude

Figure 6-12 CMRR and PSRR vs Frequency (Referred to Input)
Gain = –1 V/VCL = 100 pF
Figure 6-14 Small-Signal Step Response (100 mV)
Gain = –1 V/VCL = 100 pF
Figure 6-16 Large-Signal Step Response

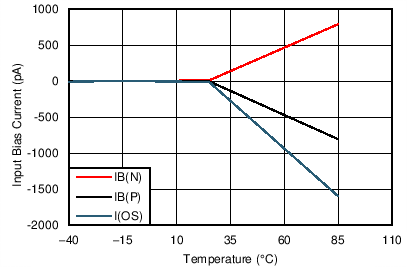

Figure 6-18 IB and IOS vs Temperature

Figure 6-20 Supply Current vs Temperature

Figure 6-22 Output Voltage vs Output Current (Sourcing)

Figure 6-24 Short-Circuit Current vs Temperature
G = 1

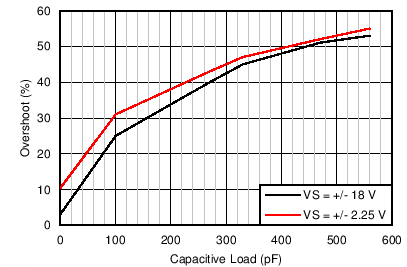

Figure 6-26 Percent Overshoot vs Capacitive Load
Gain = –10 V/V
Figure 6-28 Positive Overload Recovery
Gain = 1 V/V
Figure 6-30 No Phase Reversal
