Table 5-40 MOSC Single-Ended 25-MHz Oscillator Specification (1)

over operating free-air temperature (unless otherwise noted) (see Figure 5-33)
NO. PARAMETERMINTYPMAXUNIT
N4 fOSC Frequency 25 MHz
fTOL Frequency tolerance at operational temperature 0 ±50 ppm
tSTA Frequency stability at 1-year aging ±50 ppm
N5 tRF Frequency rise and fall time 1 ns
tJ Jitter Cycle to cycle 50 ps
Over 10 ms 1 ns
DC Duty cycle 40% 60%

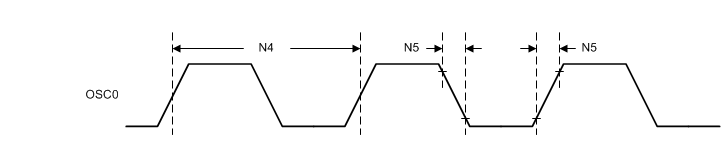

MSP432E401Y Ethernet_Oscillator_Specs.gifFigure 5-33 Single-Ended MOSC Characteristics for Ethernet
