5.26 eUSCI (SPI Master Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (1)
PARAMETERTEST CONDITIONSVCCMINTYPMAXUNIT
tSTE,LEAD STE lead time, STE active to clock UCSTEM = 0,
UCMODEx = 01 or 10		 2 V, 3 V 1 UCxCLK cycles
UCSTEM = 1,
UCMODEx = 01 or 10		 2 V, 3 V 1
tSTE,LAG STE lag time, Last clock to STE inactive UCSTEM = 0,
UCMODEx = 01 or 10		 2 V, 3 V 1 UCxCLK cycles
UCSTEM = 1,
UCMODEx = 01 or 10		 2 V, 3 V 1
tSTE,ACC STE access time, STE active to SIMO data out UCSTEM = 0,
UCMODEx = 01 or 10		 2 V, 3 V 55 ns
UCSTEM = 1,
UCMODEx = 01 or 10		 2 V, 3 V 35
tSTE,DIS STE disable time, STE inactive to SIMO high impedance UCSTEM = 0,
UCMODEx = 01 or 10		 2 V, 3 V 40 ns
UCSTEM = 1,
UCMODEx = 01 or 10		 2 V, 3 V 30
tSU,MI SOMI input data setup time 2 V 35 ns
3 V 35
tHD,MI SOMI input data hold time 2 V 0 ns
3 V 0
tVALID,MO SIMO output data valid time (2) UCLK edge to SIMO valid,
CL = 20 pF		 2 V 30 ns
3 V 30
tHD,MO SIMO output data hold time (3) CL = 20 pF 2 V 0 ns
3 V 0
(1) fUCxCLK = 1/2tLO/HI with tLO/HI = max(tVALID,MO(eUSCI) + tSU,SI(Slave), tSU,MI(eUSCI) + tVALID,SO(Slave)).
For the slave parameters tSU,SI(Slave) and tVALID,SO(Slave) see the SPI parameters of the attached slave.
(2) Specifies the time to drive the next valid data to the SIMO output after the output changing UCLK clock edge. See the timing diagrams in Figure 5-6 and Figure 5-7.
(3) Specifies how long data on the SIMO output is valid after the output changing UCLK clock edge. Negative values indicate that the data on the SIMO output can become invalid before the output changing clock edge observed on UCLK. See the timing diagrams in Figure 5-6 and Figure 5-7.

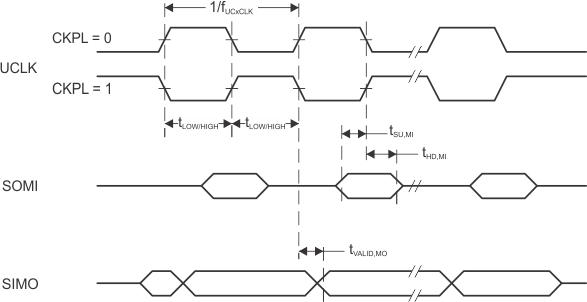

MSP430FR5739 MSP430FR5738 MSP430FR5737 MSP430FR5736 MSP430FR5735 MSP430FR5734 MSP430FR5733 MSP430FR5732 MSP430FR5731 MSP430FR5730 slas639-eUSCI_master_CKPH0.gifFigure 5-6 SPI Master Mode, CKPH = 0

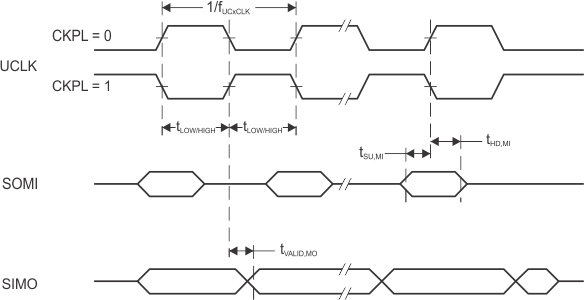

MSP430FR5739 MSP430FR5738 MSP430FR5737 MSP430FR5736 MSP430FR5735 MSP430FR5734 MSP430FR5733 MSP430FR5732 MSP430FR5731 MSP430FR5730 slas639-eUSCI_master_CKPH1.gifFigure 5-7 SPI Master Mode, CKPH = 1
