6.14.10 Port P9 (P9.0) Input/Output With Schmitt Trigger (PZ Package Only)

Figure 6-13 shows the port diagram. Table 6-71 summarizes the selection of the pin functions.

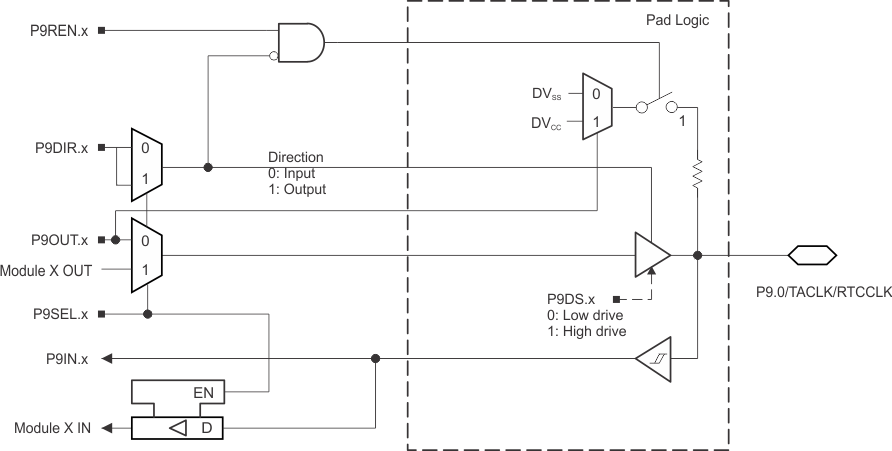

MSP430F67641 MSP430F67621 p9_0_pz_slas731.gifFigure 6-13 Port P9 (P9.0) Diagram (PZ Package Only)

Table 6-71 Port P9 (P9.0) Pin Functions (PZ Package Only)

PIN NAME (P9.x) x FUNCTION CONTROL BITS OR SIGNALS
P9DIR.x P9SEL.x
P9.0/TACLK/RTCCLK 0 P9.0 (I/O) I: 0; O: 1 0
TACLK 0 1
RTCCLK 1 1
