6.14.3 Port P1 (P1.3 to P1.5) Input/Output With Schmitt Trigger

Figure 6-6 shows the port diagram. Table 6-59 summarizes the selection of the pin functions.

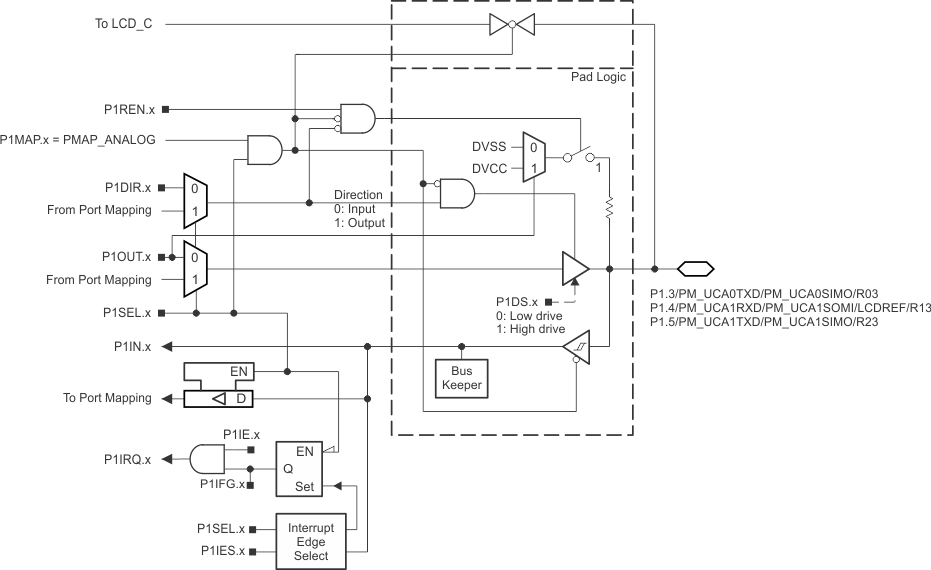

MSP430F67641 MSP430F67621 p1_345_slas731.gifFigure 6-6 Port P1 (P1.3 to P1.5) Diagram

Table 6-59 Port P1 (P1.3 to P1.5) Pin Functions

PIN NAME (P1.x) x FUNCTION CONTROL BITS OR SIGNALS(2)
P1DIR.x P1SEL.x P1MAPx
P1.3/PM_UCA0TXD/
PM_UCA0SIMO/R03		 3 P1.3 (I/O) I: 0; O: 1 0 X
UCA0TXD/UCA0SIMO X 1 default
R03(1) X 1 = 31
P1.4/PM_UCA1RXD/
PM_UCA1SOMI/
LCDREF/R13		 4 P1.4 (I/O) I: 0; O: 1 0 X
UCA1RXD/UCA1SOMI X 1 default
LCDREF/R13(1) X 1 = 31
P1.5/PM_UCA1TXD/
PM_UCA1SIMO/R23		 5 P1.5 (I/O) I: 0; O: 1 0 X
UCA1TXD/UCA1SIMO X 1 default
R23(1) X 1 = 31
(1) Setting P1SEL.x bit together with P1MAPx = PM_ANALOG disables the output driver and the input Schmitt trigger.
