8.2.1.3 Application Curves

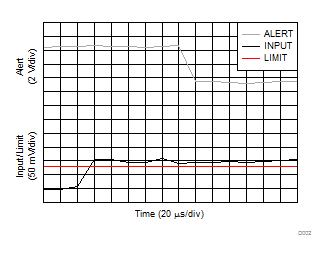

Figure 8-2 shows the Alert pin response to a shunt voltage over-limit of 80mV for a conversion time (tCT) of 1.1ms and averaging set to 1. Figure 8-3 shows the response for the same limit but with the conversion time reduced to 140µs.

INA230 Alert Response
See Table 8-2 tCT = 1.1ms
See Table 8-4 See Table 8-5
Figure 8-2 Alert Response
INA230 Alert Response
See Table 8-3 tCT = 140µs
See Table 8-4 See Table 8-5
Figure 8-3 Alert Response
Table 8-2 Configuration register (00h) Settings for Figure 8-2 (Value = 4025h)
BIT #D15D14D13D12D11D10D9D8D7D6D5D4D3D2D1D0
BIT
NAME		RST———AVG2AVG1AVG0VBUSCT2VBUSCT1VBUSCT0VSHCT2VSHCT1VSHCT0MODE3MODE2MODE1
VALUE0100000000100101
Table 8-3 Configuration register (00h) Settings for Figure 8-3 (Value = 4005h)
BIT #D15D14D13D12D11D10D9D8D7D6D5D4D3D2D1D0
BIT
NAME		RST———AVG2AVG1AVG0VBUSCT2VBUSCT1VBUSCT0VSHCT2VSHCT1VSHCT0MODE3MODE2MODE1
VALUE0100000000000101
Table 8-4 Mask/Enable register (06h) Settings for Figure 8-2 and Figure 8-3 (Value = 8000h)
BIT #D15D14D13D12D11D10D9D8D7D6D5D4D3D2D1D0
BIT
NAME		SOLSULBOLBULPOLCNVR—————AFFCVRFOVFAPOLLEN
VALUE1000000000000000
Table 8-5 Alert Limit register (07h) Settings for Figure 8-2 and Figure 8-3 (Value = 7D00)
BIT #D15D14D13D12D11D10D9D8D7D6D5D4D3D2D1D0
BIT
NAME		AUL15AUL14AUL13AUL12AUL11AUL10AUL9AUL8AUL7AUL6AUL5AUL4AUL3AUL2AUL1AUL0
VALUE0111110100000000
