6.13 Parallel Interface General Timing Requirements

MIN MAX UNIT
ƒclock PCLK frequency 1.0 155.0 MHz
tp_clkper PCLK period 50% reference points 6.45 1000 ns
tp_clkjit PCLK jitter Max ƒclock see (1)
tp_wh PCLK pulse duration high 50% reference points 2.43 ns
tp_wl PCLK pulse duration low 50% reference points 2.43 ns
tp_su Setup time – HSYNC_CS, DATAEN_CMD, PDATA(23:0) valid before the active edge of PCLK 50% reference points 0.9 ns
tp_h Hold time – HSYNC_CS, DATAEN_CMD, PDATA(23:0) valid after the active edge of PCLK 50% reference points 0.9 ns
tt Transition time – all signals 20% to 80% reference points (rising signal)
80% to 20% reference points (falling signal)		 0.2 2.0 ns
tsetup, 3DR Setup time with respect to VSYNC(2) 50% reference points 1.0 ms
thold, 3DR Hold time with respect VSYNC(3) 50% reference points 1.0 ms
(1) Calculate clock jitter (in ns) using this formula: Jitter = [1 / ƒclock – 5.76 ns]. Setup and hold times must be met even with clock jitter.
(2) In other words, the 3DR signal must change at least 1.0 ms before VSYNC changes
(3) In other words, the 3DR signal must not change for at least 1.0 ms after VSYNC changes

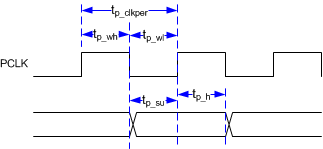

GUID-773B43D4-3462-4690-8A0F-C0C457E6AAFF-low.gifFigure 6-8 Parallel Interface General Timing
