6.8 Typical Characteristics: VDD = +5 V

At TA = +25°C, VREFH = +5 V, VREFL = 0 V, and Gain = 1X Mode, unless otherwise noted.

DAC8881 tc_5v_25c_inl_bas422.gifFigure 4. Linearity Error vs Digital Input Code
DAC8881 tc_5v_40c_inl_bas422.gifFigure 6. Linearity Error vs Digital Input Code
DAC8881 tc_5v_105c_inl_bas422.gifFigure 8. Linearity Error vs Digital Input Code
DAC8881 tc_5v_inl-tmp_bas422.gifFigure 10. Linearity Error vs Temperature
DAC8881 tc_5v_inl-tmp_2x_bas422.gifFigure 12. Linearity Error vs Temperature
(Gain = 2X Mode)
DAC8881 tc_5v_inl-vs_bas422.gifFigure 14. Linearity Error vs Supply Voltage
DAC8881 tc_5v_inl-vref_bas422.gifFigure 16. Linearity Error vs Reference Voltage
DAC8881 tc_5v_end-tmp_bas422.gifFigure 18. Endpoint Error vs Temperature

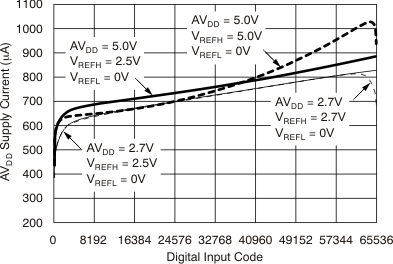

DAC8881 tc_5v_is-code_bas422.gifFigure 20. AVDD Supply Current vs Digital Input Code
DAC8881 tc_5v_is-tmp_bas422.gifFigure 22. AVDD Supply Current vs Temperature

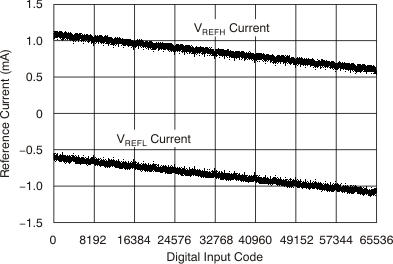

DAC8881 tc_5v_iref-code_bas422.gifFigure 24. Reference Current vs Digital Input Code
DAC8881 tc_5v_vo-dcc_bas422.gifFigure 26. Output Voltage vs Drive Current Capability
DAC8881 tc_5v_vo-dcc_agnd_bas422.gifFigure 28. Output Voltage vs Drive Current Capability
(Operation Near AGND Rail)
DAC8881 tc_5v_time_0-f_bas422.gifFigure 30. Large Signal Settling Time
DAC8881 tc_5v_time_1-f_bas422.gifFigure 32. Large Signal Settling Time
DAC8881 tc_5v_time_0-f_2x_bas422.gifFigure 34. Large Signal Settling Time (Gain = 2X Mode)
DAC8881 tc_5v_time_1-f_2x_bas422.gifFigure 36. Large Signal Settling Time (Gain = 2X Mode)
DAC8881 tc_5v_glch_7-8_5v_bas422.gifFigure 38. Major Carry Glitch
DAC8881 tc_5v_glch_7-8_25v_bas422.gifFigure 40. Major Carry Glitch
DAC8881 tc_5v_noise-frq_bas422.gifFigure 42. Output Noise Density vs Frequency
DAC8881 tc_5v_25c_dnl_bas422.gifFigure 5. Differential Linearity Error vs Digital Input Code
DAC8881 tc_5v_40c_dnl_bas422.gifFigure 7. Differential Linearity Error vs Digital Input Code
DAC8881 tc_5v_105c_dnl_bas422.gifFigure 9. Differential Lineary Error vs Digital Input Code
DAC8881 tc_5v_dnl-tmp_bas422.gifFigure 11. Differential Linearity Error vs Temperature
DAC8881 tc_5v_dnl-tmp_2x_bas422.gifFigure 13. Differential Linearity Error vs Temperature
(Gain = 2X Mode)
DAC8881 tc_5v_dnl-vs_bas422.gifFigure 15. Differential Linearity Error vs Supply Voltage
DAC8881 tc_5v_dnl-vref_bas422.gifFigure 17. Differential Linearity Error vs Reference Voltage
DAC8881 tc_5v_end-tmp_2x_bas422.gifFigure 19. Endpoint Error vs Temperature
(Gain = 2X Mode)

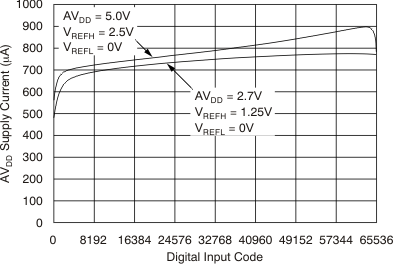

DAC8881 tc_5v_is-code_2x_bas422.gifFigure 21. AVDD Supply Current vs Digital Input Code
(Gain = 2X Mode)

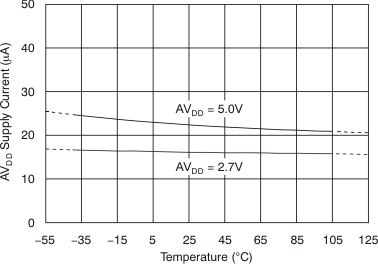

DAC8881 tc_5v_ipd-tmp_bas422.gifFigure 23. AVDD Power-Down Current vs Temperature

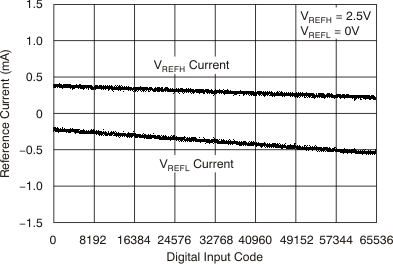

DAC8881 tc_5v_iref-code_2x_bas422.gifFigure 25. Reference Current vs Digital Input Code
(Gain = 2X Mode)
DAC8881 tc_5v_vo-dcc_avdd_bas422.gifFigure 27. Output Voltage vs Drive Current Capability
(Operation Near AVDD Rail)
DAC8881 tc_5v_iovdd-logic_bas422.gifFigure 29. IOVDD Supply Current vs Logic Input Voltage
DAC8881 tc_5v_time_f-0_bas422.gifFigure 31. Large Signal Settling Time
DAC8881 tc_5v_time_f-1_bas422.gifFigure 33. Large Signal Settling Time

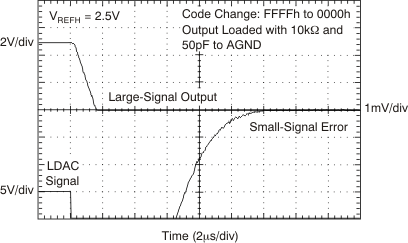

DAC8881 tc_5v_time_f-0_2x_bas422.gifFigure 35. Large Signal Settling Time (Gain = 2X Ml)
DAC8881 tc_5v_time_f-1_2x_bas422.gifFigure 37. Large Signal Settling Time (Gain = 2X Mode)
DAC8881 tc_5v_glch_8-7_5v_bas422.gifFigure 39. Major Carry Glitch
DAC8881 tc_5v_glch_8-7_25v_bas422.gifFigure 41. Major Carry Glitch
DAC8881 tc_5v_lfo_noise_bas422.gif
Figure 43. Low-Frequency Output Noise (0.1Hz to 10Hz)
