7.10 Typical Characteristics

at TA = 25°C (unless otherwise noted)

30 units shownAVDD = 24 V

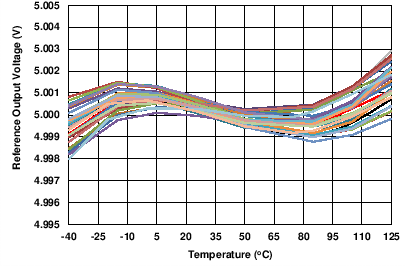

Figure 7-3 REFOUT vs Temperature
AVDD = 24 V

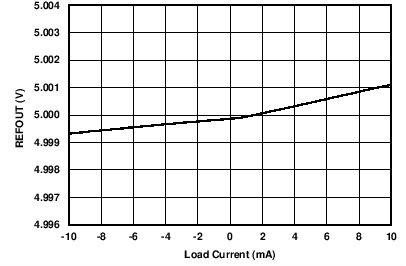

Figure 7-5 REFOUT vs Load Current
AVDD = 24 V
Figure 7-7 REFOUT Noise PSD vs Frequency
AVDD = 10 V
Figure 7-9 REFOUT Transient vs Time
TA = 25°CExternal DVDD

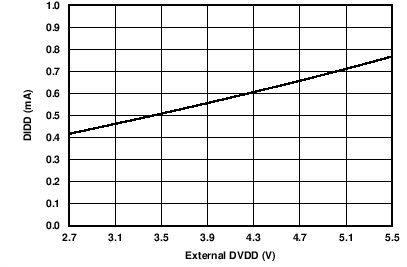

Figure 7-11 DIDD vs External DVDD
AVDD = 18 VCLOAD = 100 nF
Figure 7-13 Internal DVDD PSRR vs Frequency
AVDD = 24 VRLOAD = 300 Ω
Figure 7-15 IOUT TUE vs Code (0 mA to 20 mA)
AVDD = 10 VRLOAD = 300 Ω
Figure 7-17 IOUT TUE vs Temperature (Internal RSET)
RLOAD = 300 Ω0-mA to 24-mA range
Figure 7-19 IOUT TUE vs Supply (Internal RSET)
AVDD = 24 VRLOAD = 300 Ω

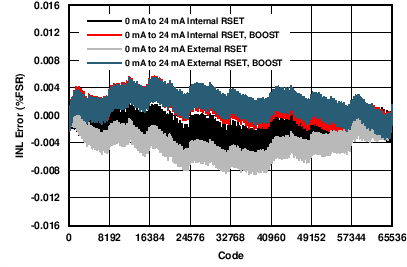

Figure 7-21 IOUT INL vs Code (0 mA to 24 mA)
AVDD = 24 VRLOAD = 300 Ω
Figure 7-23 IOUT INL vs Code (4 mA to 20 mA)
AVDD = 10 VRLOAD = 300 ΩAll IOUT ranges

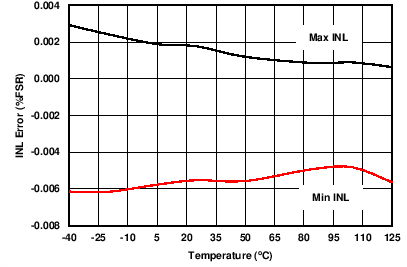

Figure 7-25 IOUT INL vs Temperature (External RSET)
RLOAD = 300 Ω0-mA to 24-mA range

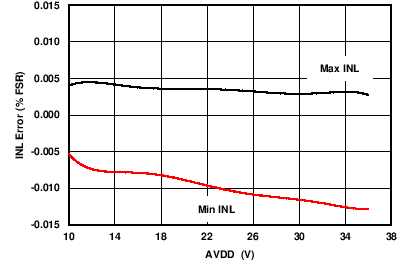

Figure 7-27 IOUT INL vs Supply (External RSET)
AVDD = 24 V0-mA to 24-mA range
RLOAD = 300 Ω

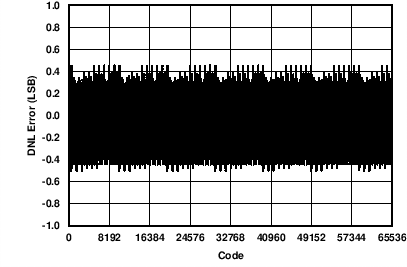

Figure 7-29 IOUT DNL vs Code (0 mA to 20 mA)
AVDD = 10 VRLOAD = 300 ΩAll IOUT ranges

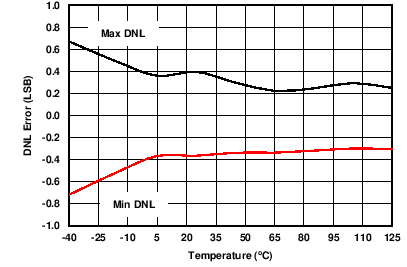

Figure 7-31 IOUT DNL vs Temperature (Internal RSET)
RLOAD = 300 Ω0-mA to 24-mA range
Figure 7-33 IOUT DNL vs Supply (Internal RSET)
AVDD = 10 VRLOAD = 300 Ω

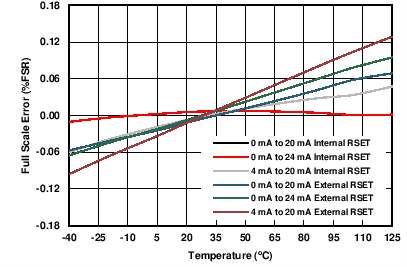

Figure 7-35 IOUT Full-Scale Error vs Temperature
AVDD = 10 VRLOAD = 300 Ω
Figure 7-37 IOUT Gain Error vs Temperature

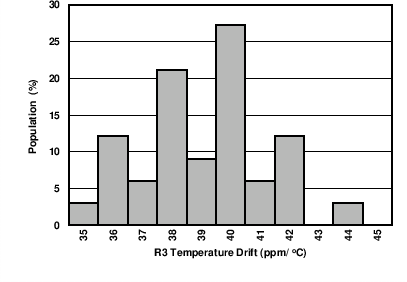

Figure 7-39 R3 Resistance Temperature Drift Histogram
AVDD = 36 V RLOAD = 300 Ω
DAC configured to deliver 24 mA
NOTE: Compliance voltage headroom is defined as the drop from the AVDD pin to the IOUT pin.

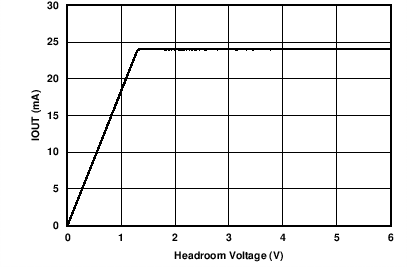

Figure 7-41 IOUT vs Compliance Headroom Voltage
AVDD = 24 V 4-mA to 20-mA range
RLOAD = 300 Ω From code: 0x0000 To code: 0xFFFF

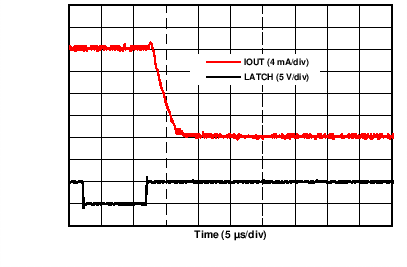

Figure 7-43 4-mA to 20-mA Falling
AVDD = 24 VRLOAD = 300 Ω

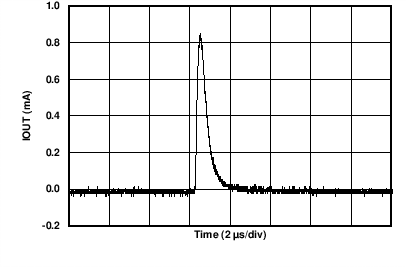

Figure 7-45 IOUT Output Enable Glitch
AVDD = 24 VRLOAD = 300 ΩAll IOUT ranges

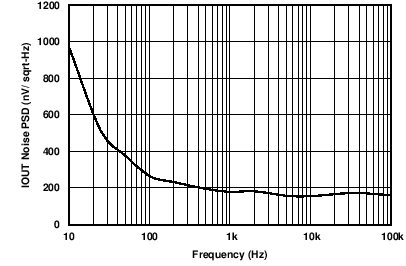

Figure 7-47 IOUT Noise PSD vs Frequency
AVDD = 36 VOutput disabled

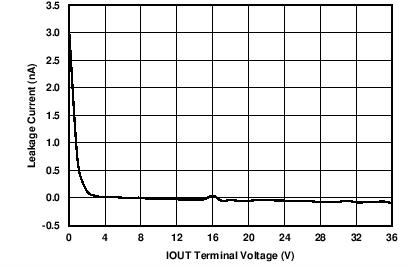

Figure 7-49 IOUT Hi-Z Leakage Current vs Voltage
GUID-981D7E7A-9D1B-49F8-8503-78AC6DB9D3BA-low.pngFigure 7-4 Internal Reference Temperature Drift Histogram
TA = 25°C

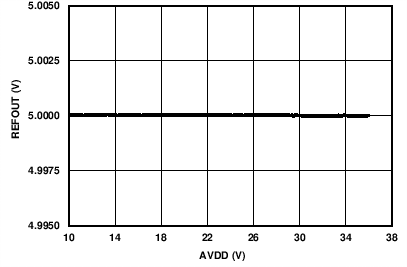

Figure 7-6 REFOUT vs AVDD
AVDD = 24 V

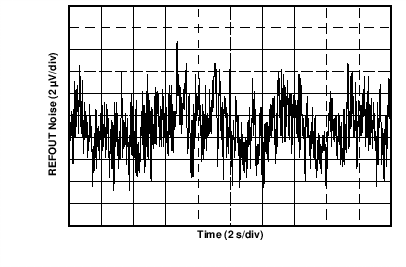

Figure 7-8 Internal Reference, Peak-to-Peak Noise (0.1 Hz to 10 Hz)
External DVDDIOUT = 0 mA

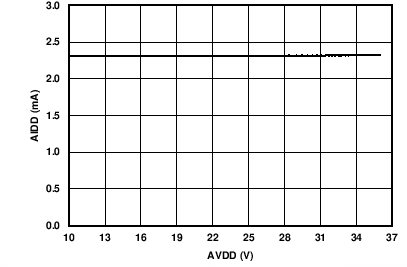

Figure 7-10 AIDD vs AVDD
TA = 25°C Internal DVDD
Figure 7-12 Internal DVDD vs Load Current
AVDD = 24 VRLOAD = 300 Ω
Figure 7-14 IOUT TUE vs Code (0 mA to 24 mA)
AVDD = 24 VRLOAD = 300 Ω
Figure 7-16 IOUT TUE vs Code (4 mA to 20 mA)
AVDD = 10 VRLOAD = 300 Ω
Figure 7-18 IOUT TUE vs Temperature (External RSET)
RLOAD = 300 Ω 0-mA to 24-mA range

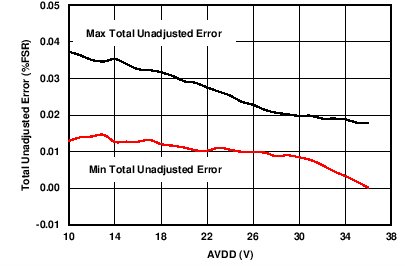

Figure 7-20 IOUT TUE vs Supply (External RSET)
AVDD = 24 VRLOAD = 300 Ω

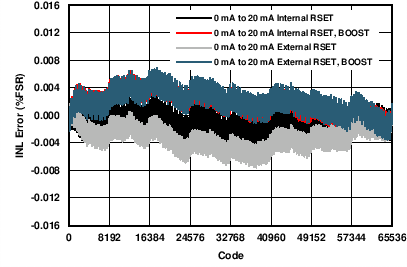

Figure 7-22 IOUT INL vs Code (0 mA to 20 mA)
AVDD = 10 VRLOAD = 300 ΩAll IOUT ranges
Figure 7-24 IOUT INL vs Temperature (Internal RSET)
RLOAD = 300 Ω0-mA to 24-mA range

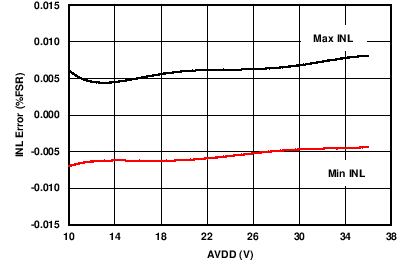

Figure 7-26 IOUT INL vs Supply (Internal RSET)
AVDD = 24 V0-mA to 24-mA range
RLOAD = 300 Ω
Figure 7-28 IOUT DNL vs Code (0 mA to 24 mA)
AVDD = 24 V4-mA to 24-mA range
RLOAD = 300 Ω
Figure 7-30 IOUT DNL vs Code (4 mA to 20 mA)
AVDD = 10 VRLOAD = 300 ΩAll IOUT ranges

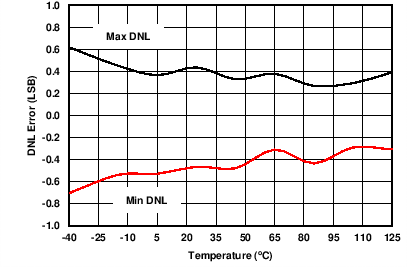

Figure 7-32 IOUT DNL vs Temperature (External RSET)
RLOAD = 300 Ω0-mA to 24-mA range

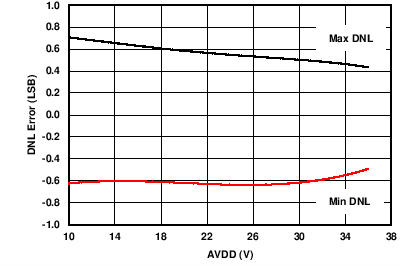

Figure 7-34 IOUT DNL vs Supply (External RSET)
AVDD = 10 VRLOAD = 300 Ω

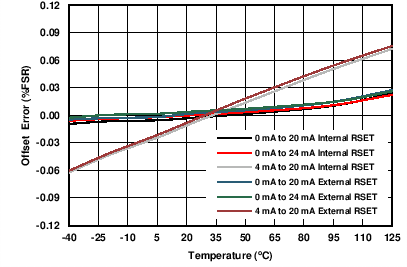

Figure 7-36 IOUT Offset Error vs Temperature
33 units shown

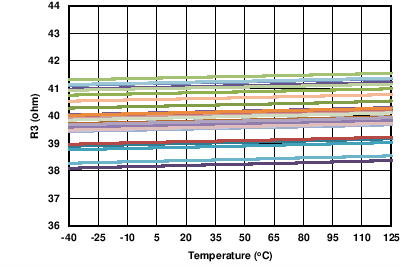

Figure 7-38 R3 Resistance vs Temperature
AVDD = 36 V IOUT = 24 mA RLOAD = 300 Ω
NOTE: Compliance voltage headroom is defined as the drop from the AVDD pin to the IOUT pin.
Figure 7-40 Compliance Headroom Voltage vs Temperature
AVDD = 24 V 4-mA to 20-mA range
RLOAD = 300 Ω From code: 0x0000 To code: 0xFFFF


Figure 7-42 4-mA to 20-mA Rising
AVDD = 24 V RLOAD = 300 Ω

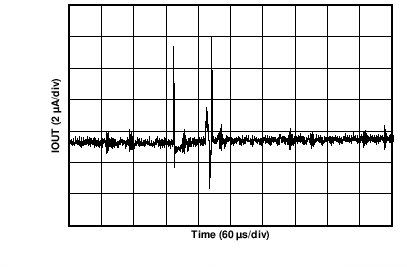

Figure 7-44 IOUT Power-On Glitch
AVDD = 24 VRLOAD = 250 Ω
Figure 7-46 IOUT Digital-to-Analog Glitch
AVDD = 24 V0-mA to 20-mA range
DAC = midscale
Figure 7-48 IOUT Peak-to-Peak Noise vs Time (0.1 Hz to 10 Hz)
AVDD = 24 VRLOAD = 250 ΩAll IOUT ranges
Figure 7-50 IOUT PSRR vs Frequency
