Using the ISET-R Pin

The second method to implement HART is to couple the HART signal through the ISET-R pin when IOUT is operated using an external RSET resistor. The FSK signal from the modem is ac-coupled into the pin through a series combination of Rin and Cin as shown in Figure 9-2.

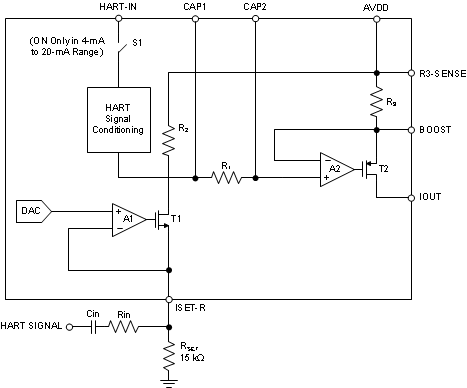

GUID-7ED8CF4F-D744-4AD0-A632-7076E846ED84-low.gifFigure 9-2 Implementing HART with the ISET-R pin

The magnitude of the ac-current output is calculated with Equation 6.

Equation 6. (VHART × k) / Rin

where

  • VHART is the amplitude of the HART FSK signal from the modem
  • k is a constant that represents the gain transfer function from the ISET-R pin to the IOUT pin and depends on the selected current output range as follows:
    • k = 60 for the 4-mA to 20-mA range
    • k = 75 for the 0-mA to 20-mA range
    • k = 90 for the 0-mA to 24-mA range

The series input resistor and capacitor form a high-pass filter at the ISET-R pin. Select Cin to make sure that all signals in the HART extended-frequency band pass through unattenuated.
