8.3.7 CTR for FET Override and Device Shutdown

The CTR pin is an active-high input pin, which can be controlled by the host system to turn off both CHG and DSG outputs momentarily to reset the system, shut down the system for low-power storage, or as a necessary shutdown if the host detects a critical system error.

The CTR pin uses a 4.5-s timer (same specification tolerance as the tOVP delay 4.5-s option) to differentiate a reset and shutdown signal. CHG and DSG are off when VCTR > CTR VIH for > 200 µs. Counting from the start of VCTR > VIH, if VCTR drops below VIL within 3.6 s, CHG and DSG simply turn back on. If CTR remains HIGH for > 5.4 s, the device enters SHUTDOWN mode.

With this timing control, the system designer can use an RC circuit to implement either a host-controlled power-on-reset or a system shutdown.

GUID-34105BD9-C496-4199-88FD-3BB06982A123-low.gifFigure 8-1 CTR Level in Rising and Falling Direction
Note:

  • CTR shuts down the device only when VCTR is HIGH for > 5.4 s AND when there is no OV or OT fault present.
  • The CTR VIH level is the voltage level at which the CTR pin is considered HIGH in the positive direction as voltage increases. There is a minimum hysteresis designed into the logic level; therefore, as voltage decreases, CTR is considered HIGH at the (VIH – VHYS) level.
  • The FET override and the shutdown functions are not available if the CTR pull-up is enabled. See Section 8.3.8 for details.

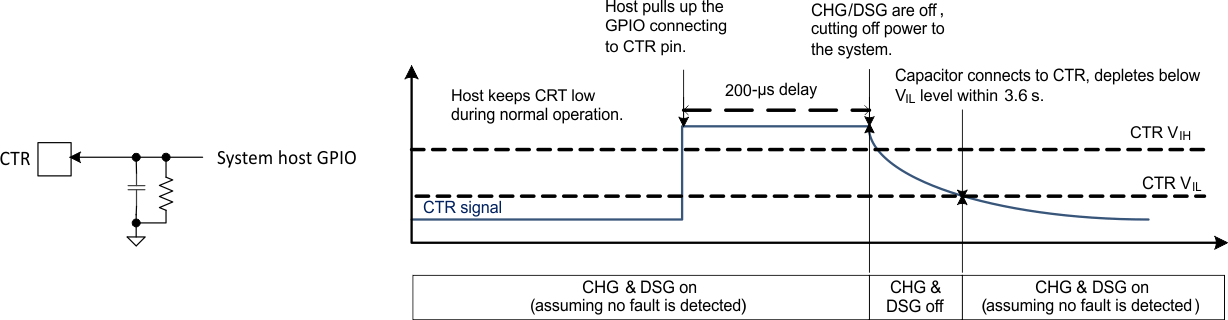

GUID-38A162EF-574B-4F9D-9DDB-FB2245DF2193-low.gifFigure 8-2 System Reset Function Implementation
GUID-6E6D2CFC-E247-4435-A9F9-B099AEF3764A-low.gifFigure 8-3 Potential System- Controlled Shutdown Implementation
