8.2.1.4 Application Curves

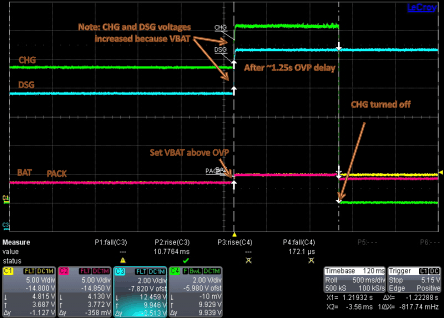

BQ2980 BQ2982 Overvoltage (OV) ProtectionFigure 8-8 Overvoltage (OV) Protection

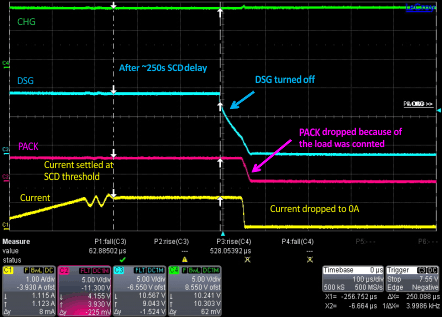

BQ2980 BQ2982 Short Circuit (SCD) ProtectionFigure 8-10 Short Circuit (SCD) Protection

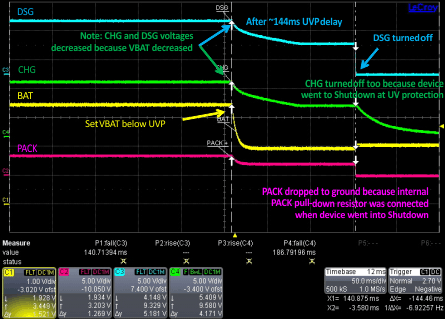

BQ2980 BQ2982 Undervoltage (UV) ProtectionFigure 8-9 Undervoltage (UV) Protection
BQ2980 BQ2982 Setup CTR for System Reset (Using 5MΩ and 1µF RC)
The RC values used in this example are for reference only. System designers should depend on their pull-up voltage and RC tolerance to add any additional margin. TI also recommends users keep the delay time below 3.6s, if possible, for the reset function.
Figure 8-11 Setup CTR for System Reset (Using 5MΩ and 1µF RC)

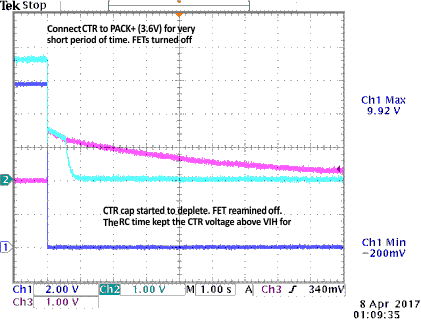

BQ2980 BQ2982 Setup CTR for System Shutdown (Using 5MΩ and 1µF RC)
The RC values used in this example are for reference only. System designers should depend on their pull-up voltage and RC tolerance to add any additional margin. TI also recommends users keep the delay time below 5.4s, if possible, for the shutdown function.
Figure 8-12 Setup CTR for System Shutdown (Using 5MΩ and 1µF RC)
