7.28 Typical Characteristics

Figure 7-2 CC Offset Error vs. Temperature
Figure 7-4 Reference Voltage vs. Temperature

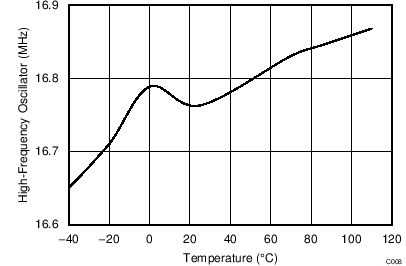

Figure 7-6 High-Frequency Oscillator vs. Temperature
Threshold setting is 88.8 mV.
Figure 7-8 Short Circuit Charge Protection Threshold vs. Temperature
Threshold setting is –177.7 mV.
Figure 7-10 Short Circuit Discharge 2 Protection Threshold vs. Temperature
Threshold setting is 465 µs.
Figure 7-12 Short Circuit Charge Current Delay Time vs. Temperature
Figure 7-14 VCELL Measurement at 2.5-V vs. Temperature
A.
This is the VCELL average for single cell.
Figure 7-16 VCELL Measurement at 4.25-V vs. Temperature
Figure 7-3 ADC Offset Error vs. Temperature

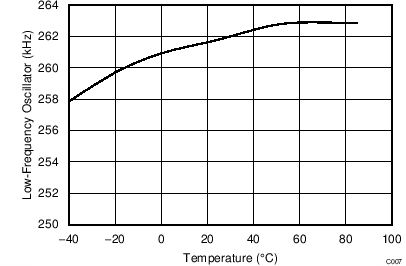

Figure 7-5 Low-Frequency Oscillator vs. Temperature
Threshold setting is 25 mV.
Figure 7-7 Overcurrent Discharge Protection Threshold vs. Temperature
Threshold setting is –88.8 mV.

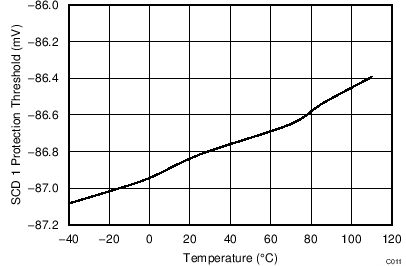

Figure 7-9 Short Circuit Discharge 1 Protection Threshold vs. Temperature
Threshold setting is 11 ms.
Figure 7-11 Overcurrent Delay Time vs. Temperature
Threshold setting is 465 µs (including internal delay).

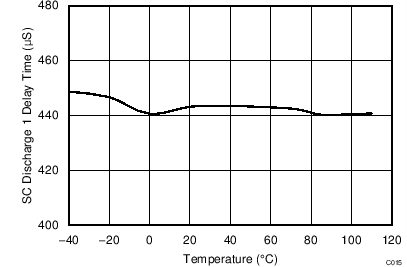

Figure 7-13 Short Circuit Discharge 1 Delay Time vs. Temperature
This is the VCELL average for single cell.
Figure 7-15 VCELL Measurement at 3.5-V vs. Temperature
ISET = 100 mA, RSNS= 1 Ω

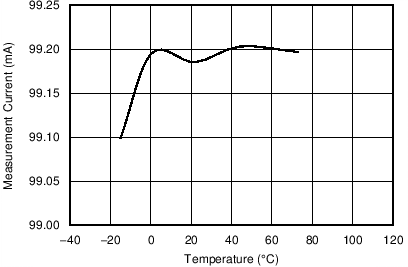

Figure 7-17 I Measured vs. Temperature
