ZHCSH00F August   2016  – November 2019 AM5706 , AM5708

PRODUCTION DATA.

  1. 1器件概述
    1. 1.1 特性
    2. 1.2 应用
    3. 1.3 说明
    4. 1.4 功能方框图
  2. 2修订历史记录
  3. 3Device Comparison
    1. 3.1 Related Products
  4. 4Terminal Configuration and Functions
    1. 4.1 Pin Diagram
    2. 4.2 Pin Attributes
    3. 4.3 Signal Descriptions
      1. 4.3.1  VIP
      2. 4.3.2  DSS
      3. 4.3.3  HDMI
      4. 4.3.4  CSI2
      5. 4.3.5  EMIF
      6. 4.3.6  GPMC
      7. 4.3.7  Timers
      8. 4.3.8  I2C
      9. 4.3.9  HDQ1W
      10. 4.3.10 UART
      11. 4.3.11 McSPI
      12. 4.3.12 QSPI
      13. 4.3.13 McASP
      14. 4.3.14 USB
      15. 4.3.15 PCIe
      16. 4.3.16 DCAN
      17. 4.3.17 GMAC_SW
      18. 4.3.18 MLB
      19. 4.3.19 eMMC/SD/SDIO
      20. 4.3.20 GPIO
      21. 4.3.21 KBD
      22. 4.3.22 PWM
      23. 4.3.23 PRU-ICSS
      24. 4.3.24 Emulation and Debug Subsystem
      25. 4.3.25 System and Miscellaneous
        1. 4.3.25.1 Sysboot
        2. 4.3.25.2 Power, Reset, and Clock Management (PRCM)
        3. 4.3.25.3 System Direct Memory Access (SDMA)
        4. 4.3.25.4 Interrupt Controllers (INTC)
      26. 4.3.26 Power Supplies
    4. 4.4 Pin Multiplexing
    5. 4.5 Connections for Unused Pins
  5. 5Specifications
    1. 5.1  Absolute Maximum Ratings
    2. 5.2  ESD Ratings
    3. 5.3  Power on Hours (POH) Limits
    4. 5.4  Recommended Operating Conditions
    5. 5.5  Operating Performance Points
      1. 5.5.1 AVS and ABB Requirements
      2. 5.5.2 Voltage And Core Clock Specifications
        1. Table 5-4 Voltage Domains Operating Performance Points
      3. 5.5.3 Maximum Supported Frequency
    6. 5.6  Power Consumption Summary
    7. 5.7  Electrical Characteristics
      1. Table 5-7  LVCMOS DDR DC Electrical Characteristics
      2. Table 5-8  Dual Voltage LVCMOS I2C DC Electrical Characteristics
      3. Table 5-9  IQ1833 Buffers DC Electrical Characteristics
      4. Table 5-10 IHHV1833 Buffers DC Electrical Characteristics
      5. Table 5-11 LVCMOS CSI2 DC Electrical Characteristics
      6. Table 5-12 BMLB18 Buffers DC Electrical Characteristics
      7. Table 5-13 Dual Voltage SDIO1833 DC Electrical Characteristics
      8. Table 5-14 Dual Voltage LVCMOS DC Electrical Characteristics
      9. 5.7.1      USBPHY DC Electrical Characteristics
      10. 5.7.2      HDMIPHY DC Electrical Characteristics
      11. 5.7.3      PCIEPHY DC Electrical Characteristics
    8. 5.8  VPP Specifications for One-Time Programmable (OTP) eFuses
      1. Table 5-15 Recommended Operating Conditions for OTP eFuse Programming
      2. 5.8.1      Hardware Requirements
      3. 5.8.2      Programming Sequence
      4. 5.8.3      Impact to Your Hardware Warranty
    9. 5.9  Thermal Resistance Characteristics for CBD Package
      1. 5.9.1 Package Thermal Characteristics
    10. 5.10 Timing Requirements and Switching Characteristics
      1. 5.10.1 Timing Parameters and Information
        1. 5.10.1.1 Parameter Information
          1. 5.10.1.1.1 1.8 V and 3.3 V Signal Transition Levels
          2. 5.10.1.1.2 1.8 V and 3.3 V Signal Transition Rates
          3. 5.10.1.1.3 Timing Parameters and Board Routing Analysis
      2. 5.10.2 Interface Clock Specifications
        1. 5.10.2.1 Interface Clock Terminology
        2. 5.10.2.2 Interface Clock Frequency
      3. 5.10.3 Power Supply Sequences
      4. 5.10.4 Clock Specifications
        1. 5.10.4.1 Input Clocks / Oscillators
          1. 5.10.4.1.1 OSC0 External Crystal
          2. 5.10.4.1.2 OSC0 Input Clock
          3. 5.10.4.1.3 Auxiliary Oscillator OSC1 Input Clock
            1. 5.10.4.1.3.1 OSC1 External Crystal
            2. 5.10.4.1.3.2 OSC1 Input Clock
          4. 5.10.4.1.4 RC On-die Oscillator Clock
        2. 5.10.4.2 Output Clocks
        3. 5.10.4.3 DPLLs, DLLs
          1. 5.10.4.3.1 DPLL Characteristics
          2. 5.10.4.3.2 DLL Characteristics
      5. 5.10.5 Recommended Clock and Control Signal Transition Behavior
      6. 5.10.6 Peripherals
        1. 5.10.6.1  Timing Test Conditions
        2. 5.10.6.2  Virtual and Manual I/O Timing Modes
        3. 5.10.6.3  VIP
        4. 5.10.6.4  DSS
        5. 5.10.6.5  HDMI
        6. 5.10.6.6  CSI2
          1. 5.10.6.6.1 CSI-2 MIPI D-PHY
        7. 5.10.6.7  EMIF
        8. 5.10.6.8  GPMC
          1. 5.10.6.8.1 GPMC/NOR Flash Interface Synchronous Timing
          2. 5.10.6.8.2 GPMC/NOR Flash Interface Asynchronous Timing
          3. 5.10.6.8.3 GPMC/NAND Flash Interface Asynchronous Timing
        9. 5.10.6.9  Timers
        10. 5.10.6.10 I2C
          1. Table 5-57 Timing Requirements for I2C Input Timings
          2. Table 5-58 Timing Requirements for I2C HS-Mode (I2C3/4/5 Only)
          3. Table 5-59 Switching Characteristics Over Recommended Operating Conditions for I2C Output Timings
        11. 5.10.6.11 HDQ1W
          1. 5.10.6.11.1 HDQ / 1-Wire — HDQ Mode
          2. 5.10.6.11.2 HDQ/1-Wire—1-Wire Mode
        12. 5.10.6.12 UART
          1. Table 5-64 Timing Requirements for UART
          2. Table 5-65 Switching Characteristics Over Recommended Operating Conditions for UART
        13. 5.10.6.13 McSPI
        14. 5.10.6.14 QSPI
        15. 5.10.6.15 McASP
          1. Table 5-72 Timing Requirements for McASP1
          2. Table 5-73 Timing Requirements for McASP2
          3. Table 5-74 Timing Requirements for McASP3/4/5/6/7/8
        16. 5.10.6.16 USB
          1. 5.10.6.16.1 USB1 DRD PHY
          2. 5.10.6.16.2 USB2 PHY
        17. 5.10.6.17 PCIe
        18. 5.10.6.18 DCAN
          1. Table 5-89 Timing Requirements for DCANx Receive
          2. Table 5-90 Switching Characteristics Over Recommended Operating Conditions for DCANx Transmit
        19. 5.10.6.19 GMAC_SW
          1. 5.10.6.19.1 GMAC MII Timings
            1. Table 5-91 Timing Requirements for miin_rxclk - MII Operation
            2. Table 5-92 Timing Requirements for miin_txclk - MII Operation
            3. Table 5-93 Timing Requirements for GMAC MIIn Receive 10/100 Mbit/s
            4. Table 5-94 Switching Characteristics Over Recommended Operating Conditions for GMAC MIIn Transmit 10/100 Mbits/s
          2. 5.10.6.19.2 GMAC MDIO Interface Timings
          3. 5.10.6.19.3 GMAC RMII Timings
            1. Table 5-99  Timing Requirements for GMAC REF_CLK - RMII Operation
            2. Table 5-100 Timing Requirements for GMAC RMIIn Receive
            3. Table 5-101 Switching Characteristics Over Recommended Operating Conditions for GMAC REF_CLK - RMII Operation
            4. Table 5-102 Switching Characteristics Over Recommended Operating Conditions for GMAC RMIIn Transmit 10/100 Mbits/s
          4. 5.10.6.19.4 GMAC RGMII Timings
            1. Table 5-106 Timing Requirements for rgmiin_rxc - RGMIIn Operation
            2. Table 5-107 Timing Requirements for GMAC RGMIIn Input Receive for 10/100/1000 Mbps
            3. Table 5-108 Switching Characteristics Over Recommended Operating Conditions for rgmiin_txctl - RGMIIn Operation for 10/100/1000 Mbit/s
            4. Table 5-109 Switching Characteristics for GMAC RGMIIn Output Transmit for 10/100/1000 Mbps
        20. 5.10.6.20 eMMC/SD/SDIO
          1. 5.10.6.20.1 MMC1—SD Card Interface
            1. 5.10.6.20.1.1 Default speed, 4-bit data, SDR, half-cycle
            2. 5.10.6.20.1.2 High speed, 4-bit data, SDR, half-cycle
            3. 5.10.6.20.1.3 SDR12, 4-bit data, half-cycle
            4. 5.10.6.20.1.4 SDR25, 4-bit data, half-cycle
            5. 5.10.6.20.1.5 UHS-I SDR50, 4-bit data, half-cycle
            6. 5.10.6.20.1.6 UHS-I SDR104, 4-bit data, half-cycle
            7. 5.10.6.20.1.7 UHS-I DDR50, 4-bit data
          2. 5.10.6.20.2 MMC2 — eMMC
            1. 5.10.6.20.2.1 Standard JC64 SDR, 8-bit data, half cycle
            2. 5.10.6.20.2.2 High-speed JC64 SDR, 8-bit data, half cycle
            3. 5.10.6.20.2.3 High-speed HS200 JEDS84 SDR, 8-bit data, half cycle
            4. 5.10.6.20.2.4 High-speed JC64 DDR, 8-bit data
              1. Table 5-134 Switching Characteristics for MMC2 - JC64 High Speed DDR Mode
          3. 5.10.6.20.3 MMC3 and MMC4—SDIO/SD
            1. 5.10.6.20.3.1 MMC3 and MMC4, SD Default Speed
            2. 5.10.6.20.3.2 MMC3 and MMC4, SD High Speed
            3. 5.10.6.20.3.3 MMC3 and MMC4, SD and SDIO SDR12 Mode
            4. 5.10.6.20.3.4 MMC3 and MMC4, SD SDR25 Mode
            5. 5.10.6.20.3.5 MMC3 SDIO High-Speed UHS-I SDR50 Mode, Half Cycle
        21. 5.10.6.21 GPIO
        22. 5.10.6.22 PRU-ICSS
          1. 5.10.6.22.1 Programmable Real-Time Unit (PRU-ICSS PRU)
            1. 5.10.6.22.1.1 PRU-ICSS PRU Direct Input/Output Mode Electrical Data and Timing
              1. Table 5-156 PRU-ICSS PRU Timing Requirements - Direct Input Mode
              2. Table 5-157 PRU-ICSS PRU Switching Requirements – Direct Output Mode
            2. 5.10.6.22.1.2 PRU-ICSS PRU Parallel Capture Mode Electrical Data and Timing
              1. Table 5-158 PRU-ICSS PRU Timing Requirements - Parallel Capture Mode
            3. 5.10.6.22.1.3 PRU-ICSS PRU Shift Mode Electrical Data and Timing
              1. Table 5-159 PRU-ICSS PRU Timing Requirements – Shift In Mode
              2. Table 5-160 PRU-ICSS PRU Switching Requirements - Shift Out Mode
            4. 5.10.6.22.1.4 PRU-ICSS PRU Sigma Delta and EnDAT Modes
              1. Table 5-161 PRU-ICSS PRU Timing Requirements - Sigma Delta Mode
              2. Table 5-162 PRU-ICSS PRU Timing Requirements - EnDAT Mode
              3. Table 5-163 PRU-ICSS PRU Switching Requirements - EnDAT Mode
          2. 5.10.6.22.2 PRU-ICSS EtherCAT (PRU-ICSS ECAT)
            1. 5.10.6.22.2.1 PRU-ICSS ECAT Electrical Data and Timing
              1. Table 5-164 PRU-ICSS ECAT Timing Requirements – Input Validated With LATCH_IN
              2. Table 5-165 PRU-ICSS ECAT Timing Requirements – Input Validated With SYNCx
              3. Table 5-166 PRU-ICSS ECAT Timing Requirements – Input Validated With Start of Frame (SOF)
              4. Table 5-167 PRU-ICSS ECAT Timing Requirements - LATCHx_IN
              5. Table 5-168 PRU-ICSS ECAT Switching Requirements - Digital IOs
          3. 5.10.6.22.3 PRU-ICSS MII_RT and Switch
            1. 5.10.6.22.3.1 PRU-ICSS MDIO Electrical Data and Timing
              1. Table 5-169 PRU-ICSS MDIO Timing Requirements – MDIO_DATA
              2. Table 5-170 PRU-ICSS MDIO Switching Characteristics - MDIO_CLK
              3. Table 5-171 PRU-ICSS MDIO Switching Characteristics – MDIO_DATA
            2. 5.10.6.22.3.2 PRU-ICSS MII_RT Electrical Data and Timing
              1. Table 5-172 PRU-ICSS MII_RT Timing Requirements – MII[x]_RXCLK
              2. Table 5-173 PRU-ICSS MII_RT Timing Requirements - MII[x]_TXCLK
              3. Table 5-174 PRU-ICSS MII_RT Timing Requirements - MII_RXD[3:0], MII_RXDV, and MII_RXER
              4. Table 5-175 PRU-ICSS MII_RT Switching Characteristics - MII_TXD[3:0] and MII_TXEN
          4. 5.10.6.22.4 PRU-ICSS Universal Asynchronous Receiver Transmitter (PRU-ICSS UART)
            1. Table 5-176 Timing Requirements for PRU-ICSS UART Receive
            2. Table 5-177 Switching Characteristics Over Recommended Operating Conditions for PRU-ICSS UART Transmit
          5. 5.10.6.22.5 PRU-ICSS IOSETs
          6. 5.10.6.22.6 PRU-ICSS Manual Functional Mapping
        23. 5.10.6.23 System and Miscellaneous interfaces
      7. 5.10.7 Emulation and Debug Subsystem
        1. 5.10.7.1 IEEE 1149.1 Standard-Test-Access Port (JTAG)
          1. 5.10.7.1.1 JTAG Electrical Data/Timing
            1. Table 5-194 Timing Requirements for IEEE 1149.1 JTAG
            2. Table 5-195 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG
            3. Table 5-196 Timing Requirements for IEEE 1149.1 JTAG With RTCK
            4. Table 5-197 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG With RTCK
        2. 5.10.7.2 Trace Port Interface Unit (TPIU)
          1. 5.10.7.2.1 TPIU PLL DDR Mode
  6. 6Detailed Description
    1. 6.1  Description
    2. 6.2  Functional Block Diagram
    3. 6.3  MPU
    4. 6.4  DSP Subsystem
    5. 6.5  PRU-ICSS
    6. 6.6  Memory Subsystem
      1. 6.6.1 EMIF
      2. 6.6.2 GPMC
      3. 6.6.3 ELM
      4. 6.6.4 OCMC
    7. 6.7  Interprocessor Communication
      1. 6.7.1 MailBox
      2. 6.7.2 Spinlock
    8. 6.8  Interrupt Controller
    9. 6.9  EDMA
    10. 6.10 Peripherals
      1. 6.10.1  VIP
      2. 6.10.2  DSS
      3. 6.10.3  Timers
        1. 6.10.3.1 General-Purpose Timers
        2. 6.10.3.2 32-kHz Synchronized Timer (COUNTER_32K)
        3. 6.10.3.3 Watchdog Timer
      4. 6.10.4  I2C
      5. 6.10.5  UART
        1. 6.10.5.1 UART Features
        2. 6.10.5.2 IrDA Features
        3. 6.10.5.3 CIR Features
      6. 6.10.6  McSPI
      7. 6.10.7  QSPI
      8. 6.10.8  McASP
      9. 6.10.9  USB
      10. 6.10.10 PCIe
      11. 6.10.11 DCAN
      12. 6.10.12 GMAC_SW
      13. 6.10.13 eMMC/SD/SDIO
      14. 6.10.14 GPIO
      15. 6.10.15 ePWM
      16. 6.10.16 eCAP
      17. 6.10.17 eQEP
    11. 6.11 On-chip Debug
  7. 7Applications, Implementation, and Layout
    1. 7.1 Power Supply Mapping
    2. 7.2 DDR3 Board Design and Layout Guidelines
      1. 7.2.1 DDR3 General Board Layout Guidelines
      2. 7.2.2 DDR3 Board Design and Layout Guidelines
        1. 7.2.2.1  Board Designs
        2. 7.2.2.2  DDR3 EMIF
        3. 7.2.2.3  DDR3 Device Combinations
        4. 7.2.2.4  DDR3 Interface Schematic
          1. 7.2.2.4.1 32-Bit DDR3 Interface
          2. 7.2.2.4.2 16-Bit DDR3 Interface
        5. 7.2.2.5  Compatible JEDEC DDR3 Devices
        6. 7.2.2.6  PCB Stackup
        7. 7.2.2.7  Placement
        8. 7.2.2.8  DDR3 Keepout Region
        9. 7.2.2.9  Bulk Bypass Capacitors
        10. 7.2.2.10 High-Speed Bypass Capacitors
          1. 7.2.2.10.1 Return Current Bypass Capacitors
        11. 7.2.2.11 Net Classes
        12. 7.2.2.12 DDR3 Signal Termination
        13. 7.2.2.13 VREF_DDR Routing
        14. 7.2.2.14 VTT
        15. 7.2.2.15 CK and ADDR_CTRL Topologies and Routing Definition
          1. 7.2.2.15.1 Four DDR3 Devices
            1. 7.2.2.15.1.1 CK and ADDR_CTRL Topologies, Four DDR3 Devices
            2. 7.2.2.15.1.2 CK and ADDR_CTRL Routing, Four DDR3 Devices
          2. 7.2.2.15.2 Two DDR3 Devices
            1. 7.2.2.15.2.1 CK and ADDR_CTRL Topologies, Two DDR3 Devices
            2. 7.2.2.15.2.2 CK and ADDR_CTRL Routing, Two DDR3 Devices
          3. 7.2.2.15.3 One DDR3 Device
            1. 7.2.2.15.3.1 CK and ADDR_CTRL Topologies, One DDR3 Device
            2. 7.2.2.15.3.2 CK and ADDR/CTRL Routing, One DDR3 Device
        16. 7.2.2.16 Data Topologies and Routing Definition
          1. 7.2.2.16.1 DQS and DQ/DM Topologies, Any Number of Allowed DDR3 Devices
          2. 7.2.2.16.2 DQS and DQ/DM Routing, Any Number of Allowed DDR3 Devices
        17. 7.2.2.17 Routing Specification
          1. 7.2.2.17.1 CK and ADDR_CTRL Routing Specification
          2. 7.2.2.17.2 DQS and DQ Routing Specification
    3. 7.3 High Speed Differential Signal Routing Guidance
    4. 7.4 Power Distribution Network Implementation Guidance
    5. 7.5 Thermal Solution Guidance
    6. 7.6 Single-Ended Interfaces
      1. 7.6.1 General Routing Guidelines
      2. 7.6.2 QSPI Board Design and Layout Guidelines
    7. 7.7 LJCB_REFN/P Connections
    8. 7.8 Clock Routing Guidelines
      1. 7.8.1 Oscillator Ground Connection
  8. 8Device and Documentation Support
    1. 8.1 Device Nomenclature
      1. 8.1.1 Standard Package Symbolization
      2. 8.1.2 Device Naming Convention
    2. 8.2 Tools and Software
    3. 8.3 Documentation Support
    4. 8.4 Related Links
    5. 8.5 Support Resources
    6. 8.6 商标
    7. 8.7 静电放电警告
    8. 8.8 Glossary
  9. 9Mechanical, Packaging, and Orderable Information
    1. 9.1 Packaging Information

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • CBD|538
散热焊盘机械数据 (封装 | 引脚)
订购信息

5.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1)
PARAMETER(1) MIN MAX UNIT
VSUPPLY (Steady-State) Supply Voltage Ranges (Steady-State) Core (vdd, vdd_dsp) -0.3 1.5 V
Analog (vdda_usb1, vdda_usb2, vdda_per, vdda_ddr, vdda_debug, vdda_mpu_abe, vdda_usb3, vdda_csi, vdda_core_gmac, vdda_gpu, dda_hdmi, vdda_pcie, vdda_video, vdda_osc) -0.3 2.0 V
Analog 3.3V (vdda33v_usb1, vdda33v_usb2) -0.3 3.8 V
vdds18v, vdds18v_ddr1, vdds_mlbp, vdds_ddr1 -0.3 2.1 V
vddshv1, vddshv3, vddshv4, vddshv7-11 (1.8V mode) -0.3 2.1 V
vddshv1, vddshv3, vddshv4, vddshv7, vddshv9-11 (3.3V mode) -0.3 3.8 V
vddshv8 (3.3V mode) -0.3 3.6 V
VIO (Steady-State) Input and Output Voltage Ranges (Steady-State) Core I/Os -0.3 1.5 V
Analog I/Os (except HDMI) -0.3 2.0 V
HDMI I/Os -0.3 3.5 V
I/O 1.35V -0.3 1.65 V
I/O 1.5V -0.3 1.8 V
1.8V I/Os -0.3 2.1 V
3.3V I/Os (except those powered by vddshv8) -0.3 3.8 V
3.3V I/Os (powered by vddshv8) -0.3 3.6 V
SR Maximum slew rate, all supplies 105 V/s
VIO (Transient Overshoot / Undershoot) Input and Output Voltage Ranges (Transient Overshoot/Undershoot)
Note: valid for up to 20% of the signal period. See Figure 5-1, IO transient voltage ranges.		 0.2 × VDD (4) V
TSTG Storage temperature range after soldered onto PC Board -55 +150 °C
Latch-up I-Test I-test(5), All I/Os (if different levels then one line per level) -100 100 mA
Latch-up OV-Test Over-voltage Test(6), All supplies (if different levels then one line per level) N/A 1.5 × Vsupply max V
  1. Stresses beyond those listed as absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those listed under Section 5.4, Recommended Operating Conditions, is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
  2. All voltage values are with respect to VSS, unless otherwise noted.
  3. See I/Os supplied by this power pin in Table 4-1Pin Attributes
  4. VDD is the voltage on the corresponding power-supply pin(s) for the IO.
  5. Per JEDEC JESD78 at 125°C with specified I/O pin injection current and clamp voltage of 1.5 times maximum recommended I/O voltage and negative 0.5 times maximum recommended I/O voltage.
  6. Per JEDEC JESD78 at 125°C.
  7. The maximum valid input voltage on an IO pin cannot exceed 0.3 volts when the supply powering the IO is turned off. This requirement applies to all the IO pins which are not fail-safe and for all values of IO supply voltage. Special attention should be applied anytime peripheral devices are not powered from the same power sources used to power the respective IO supply. It is important the attached peripheral never sources a voltage outside the valid input voltage range, including power supply ramp-up and ramp-down sequences.

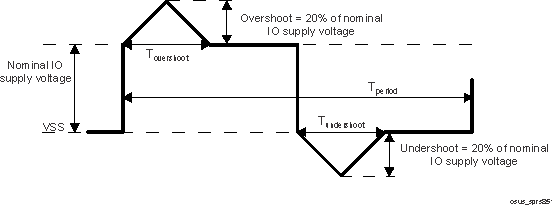

AM5706 AM5708 osus_sprs851.gif
1. Tovershoot + Tundershoot < 20% of Tperiod
Figure 5-1 IO transient voltage ranges
