4 Pin Configuration and Functions

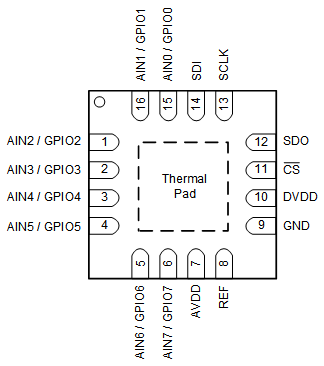

ADS7067 RTE Package,16-Pin WQFN(Top View) Figure 4-1 RTE Package,16-Pin WQFN(Top View)
Table 4-1 Pin Functions: RTE Package
PIN TYPE(1) DESCRIPTION
NAME RTE
AIN0/GPIO0 15 AI, DI, DO Channel 0; configurable as either an analog input (default) or general-purpose input/output (GPIO).
AIN1/GPIO1 16 AI, DI, DO Channel 1; configurable as either an analog input (default) or GPIO.
AIN2/GPIO2 1 AI, DI, DO Channel 2; configurable as either an analog input (default) or GPIO.
AIN3/GPIO3 2 AI, DI, DO Channel 3; configurable as either an analog input (default) or GPIO.
AIN4/GPIO4 3 AI, DI, DO Channel 4; configurable as either an analog input (default) or GPIO.
AIN5/GPIO5 4 AI, DI, DO Channel 5; configurable as either an analog input (default) or GPIO.
AIN6/GPIO6 5 AI, DI, DO Channel 6; configurable as either an analog input (default) or GPIO.
AIN7/GPIO7 6 AI, DI, DO Channel 7; configurable as either an analog input (default) or GPIO.
AVDD 7 P Analog supply voltage. Connect a 1µF capacitor to GND.
CS 11 DI Chip-select input pin; active low.
The device takes control of the data bus when CS is low.
The SDO pin goes Hi-Z when CS is high.
DVDD 10 P Digital I/O supply voltage. Connect a 1µF capacitor to GND.
GND 9 P Ground for power supply, all analog and digital signals are referred to this pin.
REF 8 P Internal reference buffer output; external reference input. Connect a 1µF capacitor to GND.
SCLK 13 DI Clock input pin for the SPI interface.
SDI 14 DI Serial data input pin for the SPI interface.
SDO 12 DO Serial data output pin for the SPI interface.
Thermal Pad Pad P Exposed thermal pad. Connect to ground.
(1) AI = analog input, DI = digital input, DO = digital output, P = power supply.
ADS7067 YBH Package,16-Pin DSBGA(Top View) Figure 4-2 YBH Package,16-Pin DSBGA
(Top View)
Table 4-2 Pin Functions: YBH Package
PIN TYPE(1) DESCRIPTION
YBH NAME
A1 AIN5/GPIO5 AI, DI, DO Channel 5; configurable as either an analog input (default) or GPIO.
A2 DVDD P Digital I/O supply voltage. Connect a 1µF capacitor to GND.
A3 AVDD P Analog supply voltage. Connect a 1µF capacitor to GND.
A4 REF P Internal reference buffer output; external reference input. Connect a 1µF capacitor to GND.
B1 AIN4/GPIO4 AI, DI, DO Channel 4; configurable as either an analog input (default) or GPIO.
B2 AIN6/GPIO6 AI, DI, DO Channel 6; configurable as either an analog input (default) or GPIO.
B3 AIN7/GPIO7 AI, DI, DO Channel 7; configurable as either an analog input (default) or GPIO.
B4 GND P Ground for power supply, all analog and digital signals are referred to this pin.
C1 AIN3/GPIO3 AI, DI, DO Channel 3; configurable as either an analog input (default) or GPIO.
C2 AIN1/GPIO1 AI, DI, DO Channel 1; configurable as either an analog input (default) or GPIO.
C3 AIN0/GPIO0 AI, DI, DO Channel 0; configurable as either an analog input (default) or general-purpose input/output (GPIO).
C4 CS DI Chip-select input pin; active low.
The device takes control of the data bus when CS is low.
The SDO pin goes to Hi-Z when CS is high.
D1 AIN2/GPIO2 AI, DI, DO Channel 2; configurable as either an analog input (default) or GPIO.
D2 SDI DI Serial data input pin for SPI interface.
D3 SDO DO Serial data output pin for SPI interface.
D4 SCLK DI Clock input pin for the SPI interface.
(1) AI = analog input, DI = digital input, DO = digital output, P = power supply.
