RESET: Reset to POR Values

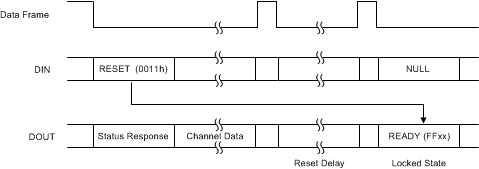

The RESET command places the ADC into a power-on reset (POR) state, resetting all user registers to the default states. The reset begins following the completion of the frame. When reset completes, the ADC enters a reset locked state and outputs the READY status response on DOUT as the command status response. An example of the response to a RESET command is shown in Figure 69.

ADS131A02 ADS131A04 User_command_RESET_sbas590.gifFigure 69. RESET Command Status Response
