6 Pin Configuration and Functions

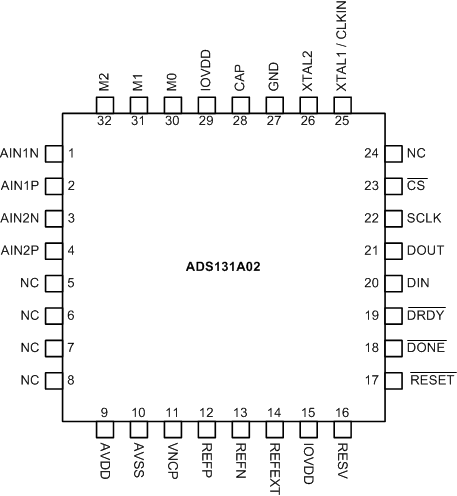

ADS131A02: PBS Package
32-Pin TQFP
Top View
ADS131A02 ADS131A04 ADS131A02_pinout_sbas590.gif
ADS131A04: PBS Package
32-Pin TQFP
Top View
ADS131A02 ADS131A04 ADS131A04_pinout_sbas590.gif

Pin Functions

PIN I/O DESCRIPTION(2)
NAME NO.
ADS131A02 ADS131A04
AIN1N 1 1 Analog input Negative analog input 1
AIN1P 2 2 Analog input Positive analog input 1
AIN2N 3 3 Analog input Negative analog input 2
AIN2P 4 4 Analog input Positive analog input 2
AIN3N — 5 Analog input Negative analog input 3
AIN3P — 6 Analog input Positive analog input 3
AIN4N — 7 Analog input Negative analog input 4
AIN4P — 8 Analog input Positive analog input 4
AVDD 9 9 Supply Positive analog power supply. Connect a 1-µF capacitor to AVSS.
AVSS 10 10 Supply Negative analog power supply
CAP 28 28 Analog output Digital low-dropout (LDO) regulator output. Connect a 1-µF capacitor to GND.
CS 23 23 Digital input Chip select; active low
DIN 20 20 Digital input Serial data input
DONE 18 18 Digital output Communication done signal; active low
DOUT 21 21 Digital output Serial data output. Connect a 100-kΩ pullup resistor to IOVDD.
DRDY 19 19 Digital input/output Data ready; active low; host interrupt and synchronization for multi-devices
GND 27 27 Supply Digital ground
IOVDD 15 15 Supply Digital I/O supply voltage. Connect a 1-µF capacitor to GND.
29 29
M0(1) 30 30 Digital input Serial peripheral interface (SPI) configuration mode.
IOVDD: Asynchronous interrupt mode
GND: Synchronous master mode
No connection: Synchronous slave mode; use for multi-device mode
M1(1) 31 31 Digital input SPI word transfer size.
IOVDD: 32 bit
GND: 24 bit
No connection: 16 bit
M2(1) 32 32 Digital input Hamming code enable.
IOVDD: Hamming code word validation on
GND: Hamming code word validation off
No connection: reserved; do not use
NC 5-8 — — Leave floating or connect directly to AVSS.
NC 24 24 Digital output No connection
REFEXT 14 14 Analog input Buffered external reference voltage input.
Connect a 1-µF capacitor to AVSS when using the internal reference.
REFN 13 13 Analog input Negative reference voltage. Connect to AVSS.
REFP 12 12 Analog output Positive reference voltage output. Connect a 1-µF capacitor to REFN.
RESET 17 17 Digital input System reset; active low
RESV 16 16 Digital input Reserved pin; connect to IOVDD
SCLK 22 22 Digital input/output Serial data clock
VNCP 11 11 Analog output Negative charge pump voltage output.
Connect a 270-nF capacitor to AVSS when enabling the negative charge pump. Connect directly to AVSS if the negative charge pump is unused.
XTAL1/CLKIN 25 25 Digital input Master clock input, crystal oscillator buffer input
XTAL2 26 26 Digital output Crystal oscillator connection. Leave this pin unconnected if the crystal oscillator is unused.
(1) Mode signal states are latched following a power-on-reset (POR). Tie these pins high or low with a resistance less than 1-kΩ resistor.
(2) See the Unused Inputs and Outputs section for unused pin connections.
