7.11 Switching Characteristics: Synchronous Slave Interface Mode

over operating ambient temperature range (unless otherwise noted)
1.65 V ≤ IOVDD ≤ 2.7 V 2.7 V < IOVDD ≤ 3.6 V UNIT
MIN MAX MIN MAX
tp(SCDOD) Propagation delay time,
first SCLK rising edge to DOUT driven 		28 15 ns
tp(SCDO) Propagation delay time,
SCLK rising edge to valid new DOUT		 26 15 ns
th(LSB) Hold time, last SCLK falling edge to DOUT 3-state HIZDLY = 00 6 30 6 20 ns
HIZDLY = 01 8 37 8 27
HIZDLY = 10 10 43 10 43
HIZDLY = 11 12 47 12 47
tp(DN) Propagation delay time, SCLK falling edge to DONE falling edge DNDLY = 00 6 33 6 21 ns
DNDLY = 01 8 39 8 27
DNDLY = 10 10 44 10 32
DNDLY = 11 12 48 12 36
tp(CSDN) Propagation delay time,
CS rising edge to DONE rising edge 		32 32 ns
td(RSSC) Delay time,
RESET rising edge to READY response 		4.5 4.5 ms
ADS131A02 ADS131A04 timing_Asynchronous_sbas590.gif

NOTE:

SPI settings are CPOL = 0 and CPHA = 1. CS transitions must take place when SCLK is low.
Figure 1. Asynchronous Interrupt Mode SPI Timing Diagram

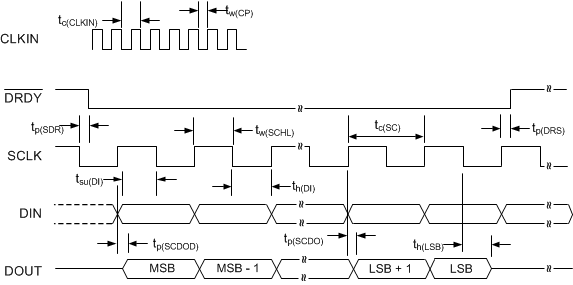

ADS131A02 ADS131A04 timing_SynchronousM_sbas590.gif

NOTE:

SPI settings are CPOL = 0 and CPHA = 1.
Figure 2. Synchronous Master Mode SPI Timing Diagram

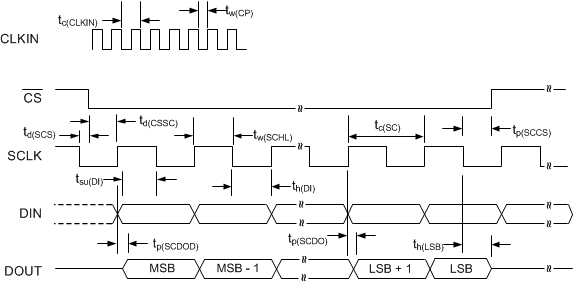

ADS131A02 ADS131A04 timing_SynchronousS_sbas590.gif

NOTE:

SPI settings are CPOL = 0 and CPHA = 1. CS can be tied directly to DRDY.
Figure 3. Synchronous Slave Mode SPI Timing Diagram
ADS131A02 ADS131A04 SSlave_DRDY_SynchCLKIN_sbas590.gifFigure 4. DRDY Synchronization Timing for Synchronous Slave Mode (CLKSRC = 0)
ADS131A02 ADS131A04 SSlave_DRDY_Synch_sbas590.gifFigure 5. DRDY Synchronization Timing for Synchronous Slave Mode (CLKSRC = 1)
ADS131A02 ADS131A04 DONE_timing_sbas590.gifFigure 6. DONE Signal Timing
ADS131A02 ADS131A04 HW_timing_RESET_SPI_sbas590.gifFigure 7. RESET Pin and Command Timing
