8.5.1.11 GANCAL: Gain Calibration

This command performs a gain calibration. The inputs to the converter should have a stable DC input, preferably close to (but not exceeding) positive full-scale. The gain calibration register updates after this operation. See Calibration Commands for more details.

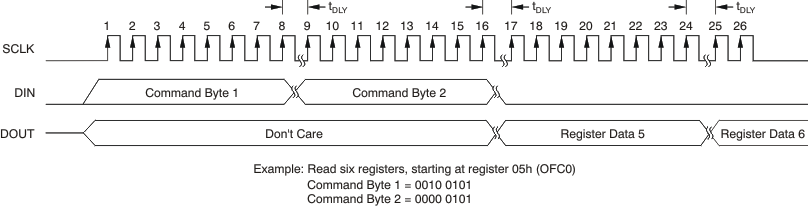

ADS1282-SP com_rreg_bas418.gifFigure 59. Read Register Data (Equation 11 Shows tDLY)

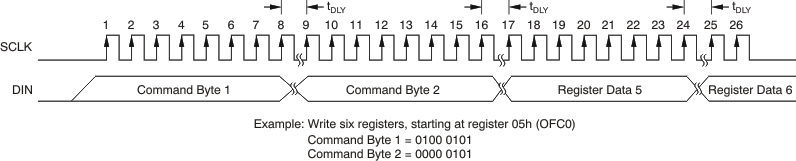

ADS1282-SP com_wreg_bas418.gifFigure 60. Write Register Data (Equation 11 Shows tDLY)
Equation 11. tDLY = 24 / ƒCLK
