7.10 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Group delay(1) Minimum phase filter 5 / ƒDATA s
Linear phase filter 31 / ƒDATA s
Settling time (latency) Minimum phase filter 62 / ƒDATA s
Linear phase filter 62 / ƒDATA s
(1) At DC. See Figure 42.

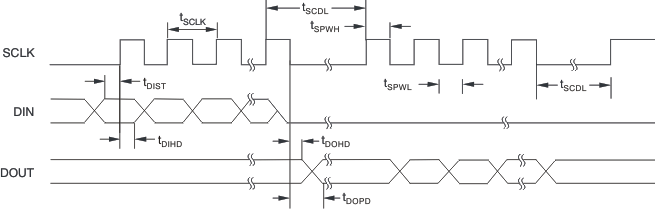

ADS1282-SP time_bas418.gifFigure 1. Timing Diagram
