Pin Configuration and Functions

GUID-13C9B5A2-4BED-43CF-91EE-DCF598F1FE26-low.gifFigure 5-1 PW Package,20-Pin TSSOP(Top View)

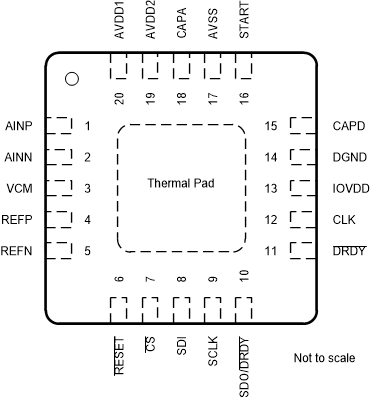

GUID-5BE082D7-15A5-4D6C-BC1B-9E1C0672A558-low.gifFigure 5-2 RUK Package,20-Pin WQFN(Top View)
Table 5-1 Pin Functions
NAME PIN NO. I/O DESCRIPTION
TSSOP WQFN
AINN 5 2 Analog input Negative analog input; see the Analog Input section for details
AINP 4 1 Analog input Positive analog input; see the Analog Input section for details
AVDD1 3 20 Analog Supply Positive analog supply 1; see the Section 8.3.6 section for details
AVDD2 2 19 Analog Supply Positive analog supply 2; see the Section 8.3.6 section for details
AVSS 20 17 Analog Supply Negative analog supply; see the Section 8.3.6 section for details
CAPA 1 18 Analog output Analog voltage regulator output capacitor bypass
CAPD 18 15 Analog output Digital voltage regulator output capacitor bypass
CLK 15 12 Digital input Clock input; see the Section 8.3.3 section for details
CS 10 7 Digital input Chip select, active low; see the Chip Select section for details
DGND 17 14 Ground Digital ground
DRDY 14 11 Digital output Data ready, active low; see the Section 8.5.7.2 section for details
IOVDD 16 13 Digital Supply I/O supply voltage; see the Section 8.3.6 section for details
REFN 8 5 Analog input Negative reference input; see the Reference Voltage section for details
REFP 7 4 Analog input Positive reference input; see the Reference Voltage section for details
RESET 9 6 Digital input Reset, active low; see the Section 8.4.5 section for details
SCLK 12 9 Digital input Serial data clock; see the Serial Clock section for details
SDI 11 8 Digital input Serial data input; see the Serial Data Input section for details
SDO/DRDY 13 10 Digital output Serial data output and data ready (optional); see the SDO/DRDY section for details
START 19 16 Digital input Conversion start; see the Section 8.4.6 section for details
VCM 6 3 Analog output Common-mode voltage buffered output; see the Section 8.3.7 section for details
Thermal Pad Pad Thermal power pad; connect to AVSS
