Sinc3 Filter

The sinc3 filter mode is a single-stage filter. Relatively high values of OSR provide line-cycle rejection with data rates = 480 SPS, 400 SPS, 60 SPS, and 50 SPS. Because of the large width of the frequency response notch, excellent line-frequency NMRR and CMRR can be achieved with this filter. Table 8-7 summarizes the characteristics of the sinc3 filter.

Table 8-7 Sinc3 Filter Characteristics
OSR DATA RATE (SPS) –3-dB FREQUENCY (Hz) LATENCY (ms) REJECTION OF FIRST NULL (dB)
2% CLOCK TOLERANCE 6% CLOCK TOLERANCE
HIGH-SPEED MODE (fCLK = 25.6 MHz)
26667 480 126 6.25 100 71
32000 400 105 7.50 100 71
LOW-SPEED MODE (fCLK = 3.2 MHz)
26667 60 15.7 50.01 100 71
32000 50 13.1 60.01 100 71

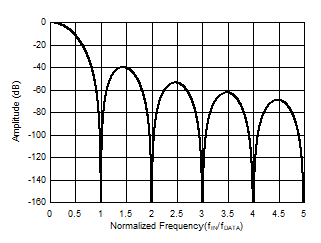

Figure 8-17 shows the frequency response of the sinc3 filter (OSR = 32000). Figure 8-18 shows the detailed response in the region of 0.9 to 1.1 · fIN / fDATA.

GUID-20201006-CA0I-2CSD-6XTF-4HPBXJRNNG2K-low.gifFigure 8-17 Sinc3 Frequency Response
(OSR = 32000)
GUID-20201006-CA0I-VJD0-PKS7-FQJH9W12PBQH-low.gifFigure 8-18 Detail Sinc3 Frequency Response (OSR = 32000)
