Sinc4 Filter

The sinc4 filter averages and decimates the high-speed modulator data to yield data rates from 1066.6 kSPS to 3.125 kSPS in high-speed mode, and data rates from 133.333 kSPS to 0.390625 kSPS in low-speed mode. Increasing the OSR value decreases the data rate and simultaneously reduces signal bandwidth and total noise resulting from increased decimation and data averaging.

Because of the reduced amount of data averaging performed in the filtering process for OSR values = 12, 16 and 24, the output resolution of the corresponding data rates is reduced. Table 8-4 summarizes the output data resolution for these OSR values.

Table 8-4 Sinc4 Data Resolution
OSR DATA RATE (kSPS) RESOLUTION (bits)
12 1066.666 19
16 800 20.5
24 533.333 23
≥32 ≤400 24

Table 8-5 lists the sinc4 filter characteristics.

Table 8-5 Sinc4 Filter Characteristics
OSR DATA RATE (kSPS) –3-dB FREQUENCY (kHz) LATENCY TIME (µs)(1)
HIGH-SPEED MODE (fCLK = 25.6 MHz)
12 1066.666 242.666 4.38
16 800 182 5.63
24 533.333 121.333 8.13
32 400 91.0 10.63
64 200 45.5 20.63
128 100 22.75 40.63
256 50 11.375 80.63
512 25 5.687 160.63
1024 12.5 2.844 320.63
2048 6.25 1.422 640.63
4096 3.125 0.711 1280.63
LOW-SPEED MODE (fCLK = 3.2 MHz)
12 133.333 30.333 35.04
16 100 22.75 45.04
24 66.666 15.166 65.04
32 50 11.375 85.04
64 25 5.687 165.04
128 12.5 2.844 325.04
256 6.25 1.422 645.04
512 3.125 0.711 1285.04
1024 1.5625 0.355 2565.04
2048 0.78125 0.177 5125.04
4096 0.390625 0.089 10245.04
Latency time increases 8 / fCLK (µs) when analog input buffers are enabled.

Figure 8-14 and Figure 8-15 show the sinc4 filter frequency response at OSR = 32. The frequency response consists of a series of response nulls occurring at discrete frequencies. The null frequencies occur at multiples of fDATA. At the null frequencies, the filter has zero gain. A folded image of the overall frequency response appears at multiples of fMOD, as illustrated in the fMOD frequency plot of Figure 8-15. No attenuation is provided by the filter at input frequencies near n · fMOD (n = 1, 2, 3, and so on), and if present, alias into the pass band.

GUID-20201006-CA0I-VDBF-P30Z-ZTLM55Q8WJQW-low.gifFigure 8-14 Sinc4 Frequency Response
(OSR = 32)

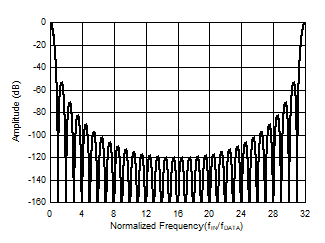

GUID-20201006-CA0I-Q0SJ-N9TB-N7CKR6R5TSKS-low.gifFigure 8-15 Sinc4 Frequency Response to fMOD (OSR = 32)
